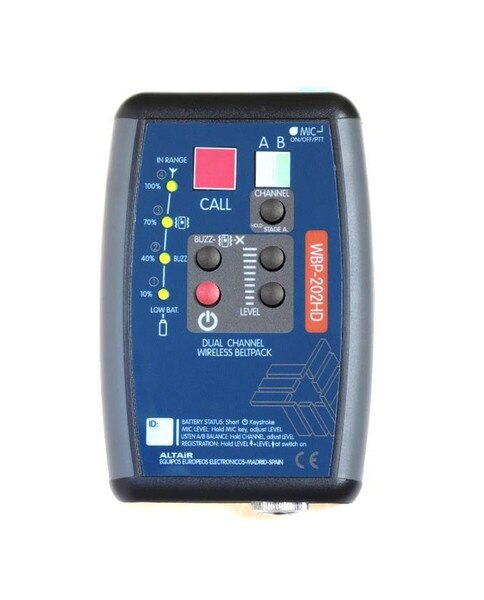

WBP-202HD "Compact Series" dual channel wireless beltpack is the brand new version of the WBP-202 (discontinued). Compact Series beltpacks offer an unmatching price-quality ratio, with a low-size design, impressive range and remarcable autonomy. WBP-202HD allows simultaneous or independent communication with two separate intercom channels (selectable A, B or A&B). As in every ALTAIR wireless beltpack model, antennas are located inside the enclosure allowing a more comfortable belt fitting. Please note that a maximum of two dual channel wireless beltpacks can be connected to one dual channel wireless base station (WBS-202HD or WBS-202). Furthermore, the two dual channel beltpacks must be connected to different RADIO links (one to RADIO 1 and one to RADIO 2). Battery status can be easily checked using the front pannel led bargraph. The beltpack also features a low-consumption "call receive" mode and general low power circuitry. "Out of range" indication helps the user be aware of the coverage area and prevent possible communication dropouts. MAIN FEATURES - Range: Typical 50 to 350 m around base station. - Wideband Audio: 100Hz - 7kHz when used along with any ALTAIR "HD" base station. - "MIC" Button: New "MIC" button, more accessible, placed on the upper side of the beltpack. - Estimated Battery life: 10 hours in full Duplex mode. / 50 hours in Call receive mode. - Battery type: NI-MH. 3,6 VDC pack. - Charger: External case/wall mounting charger allowing 4 beltpack charging. ( Not included - Sold Separately ) - Headset Connector: 4 pin "mini" XLR . - Headset Type: Selectable, dynamic or electret. - Controls: Call. Volume level. Mic On/Off/PTT. Buzz On/Off. Vibrator On/Off. - Indicators: Call. Battery status, Low Batt. Mic On/Off. Buzz On/Off. In Range led. Vibrator. - Call Notification System: Light, Vibration and Buzzer. - Dimensions / Weight: 120x80x25 mm / 175 gr. COMPATIBLE PRODUCTS / ACCESSORIES - Headsets:WAM-100, WAM-100/2, WAM-100S, WAM-100/2S, WAM-100/2SEC (in-ear) and WAM-100/2L (lightweight) - Charger:WBPC-200- Base Stations: WBP-202HD beltpack is compatible with any ALTAIR wireless intercom base station (WBS-200HD, WBS-202HD, WBS-200 & WBS-202) ] DIGITAL, ENCRYPTED COMMUNICATIONS LICENSE FREE FREQUENCY OPERATION
