ChamSys QuickQ 10 Lighting Control Console
Details
Details

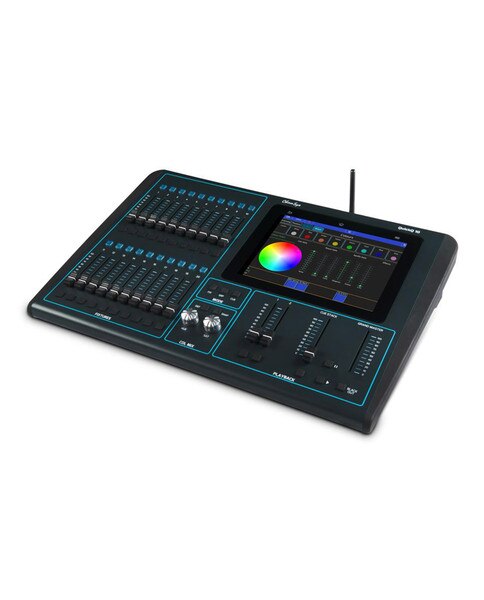

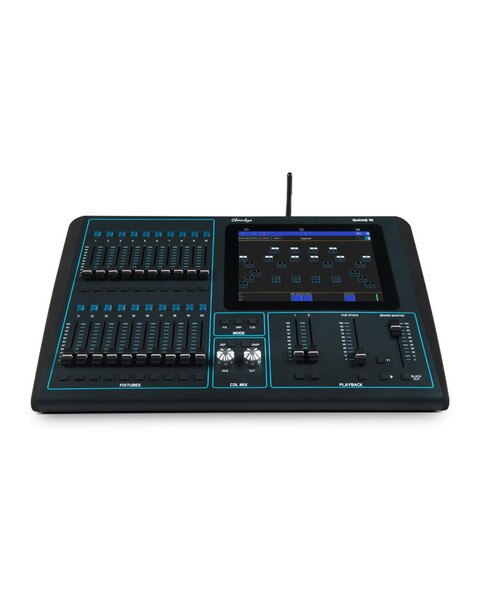

The ChamSys QuickQ 10 is a user-friendly lighting control console designed for dimmer and LED color mixing fixtures. Featuring a 9.7-inch multi-touch display, it offers an intuitive interface for setup, programming, and playback.
With built-in Wi-Fi, the QuickQ 10 allows remote access via the QuickQ app on iOS, Android, and Windows devices. It supports RDM compliant fixtures and includes a comprehensive personality library with over 45,000 fixtures.
| Specification | Details |
|---|---|
| Universes Supported | 1 |
| Direct DMX Outputs (5-Pin XLR) | 1 |
| Master Playback Faders | 2 Chase, 1 Cue Stack |
| Multi-Function Fixture Faders | 20 |
| Bump Buttons | Yes |
| Dedicated Hue/Saturation Encoders | Yes |
| Inbuilt Display | 9.7” Multi-touch |
| External Monitor Support | 1920 x 1080 HDMI |
| Inbuilt Wi-Fi | Yes |
| USB Ports | 2 |
| Audio Input | 1 |
| Audio Output | 1 |
| Max Power Consumption | 60W |
| Max Number of DMX Channels | 512 |
| Max Number of Fixtures Supported | 512 |
| Max Number of Cue Stacks | 1 |
| Max Number of Chases | 2 |
| Fixture Library | Over 30,000 fixture files |
