ChamSys QuickQ 20 Lighting Control Console
Details

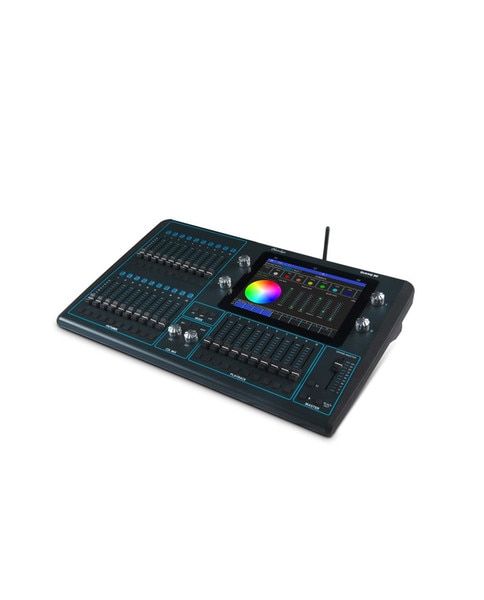

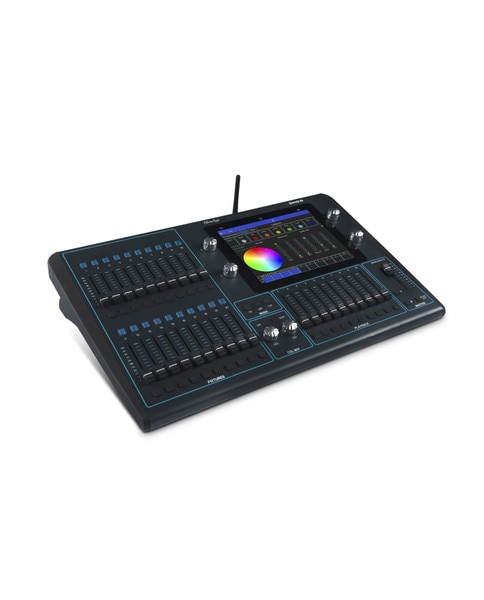

The ChamSys QuickQ 20 is a user-friendly lighting control console designed for dimmers, LED color mixing, and moving light fixtures. Featuring a 9.7-inch multi-touch display, it offers an intuitive interface for setup, programming, and playback.
With built-in Wi-Fi, the console connects to the free QuickQ app on iOS, Android, and Windows devices. It supports RDM compliant fixtures and includes a comprehensive library of over 45,000 personalities for versatile lighting control.
| Specification | Details |
|---|---|
| Universes Supported | 2 |

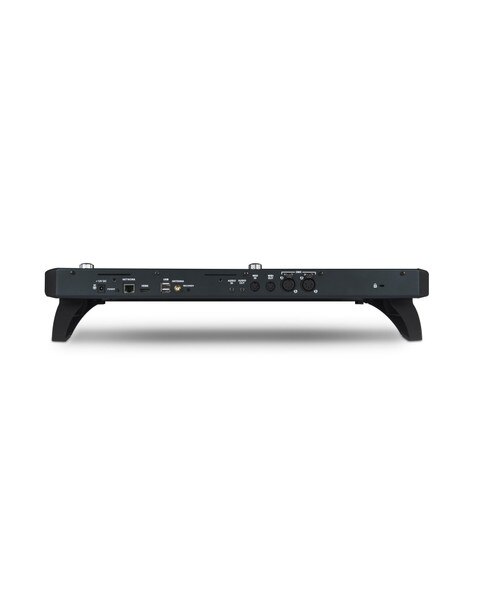

| Direct DMX Outputs | 2 (5-Pin XLR) |
| Master Playback Faders | 10 |
| Multi-Function Fixture Faders | 20 |
| Bump Buttons | Yes |
| Attribute Encoders | 4 |
| Dedicated Hue/Saturation Encoders | Yes |
| Inbuilt Display | 9.7” Multi-touch |
| External Monitor Support | 1920 x 1080 HDMI |
| Inbuilt Wi-Fi | Yes |
| Network Port | 1 |
| USB Ports | 2 |
| Audio Input | 1 |
| Audio Output | 1 |
| MIDI Ports | In/Out: Yes |
| Max Power Consumption | 60 W |
| Max DMX Channels | 1024 |
| Max Fixtures Supported | 1024 |
| Max Cue Stacks | 10 |
| Max Chases | 10 |
| MIDI & Timecode Supported | Yes |
| RDM Autopatch | Yes |
| Fixture Library | Over 30,000 fixture files |
| Offline Software | Available for Windows and Mac |
