Chauvet Professional COLORado PXL Curve 12

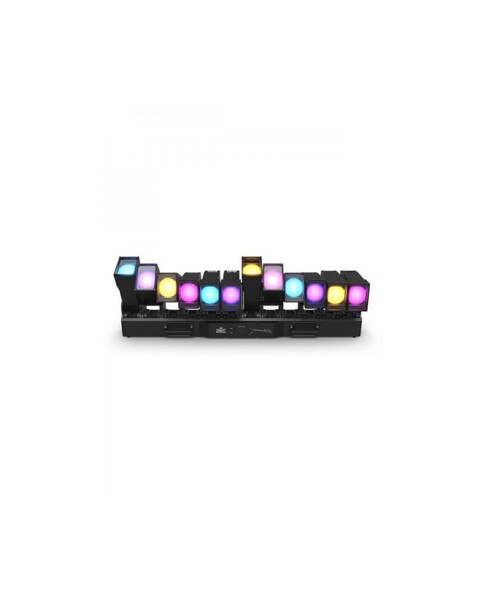

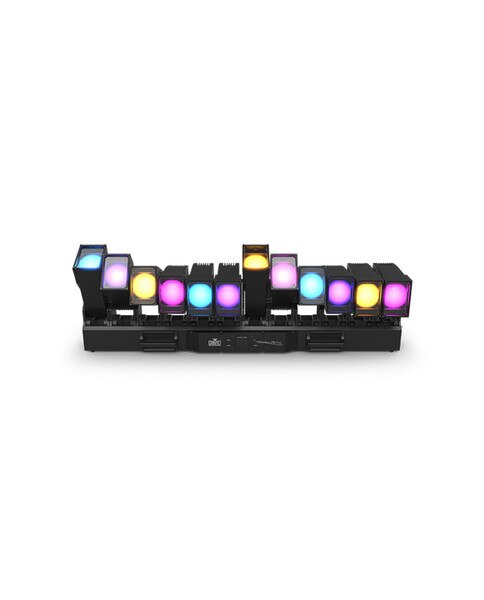

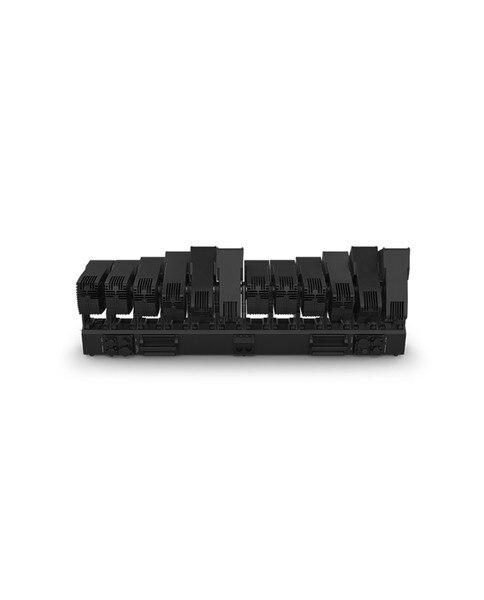

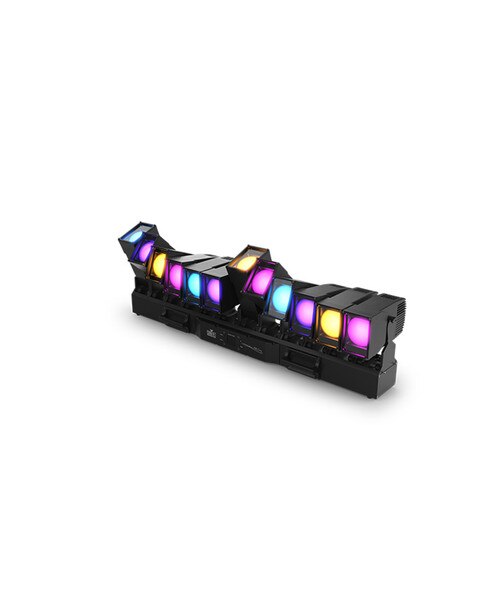

COLORado PXL Curve 12 is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures helping to make runway effects consistent. COLORado PXL Curve 12 speaks DMX, sACN, Art-Net, Kling-Net and RDM.
At A Glance- IP65 batten with (12) 45W RGBW LEDs. (12) individually controllable tilting heads with a 5.7° to 36.3°zoom range. Maintains pixel pitch between fixtures.
- Quiet and quick operation of 200° of tilt of each if (12) heads
- Quiet and quick operation of (12) individual zoom zones
- Fully pixel mappable
- Several built-in effects including virtual gobos and movement macros with foreground and background colour control for easy pixel animation effects
- DMX, SACN, Art-Net, and Kling-Net control for full flexibility
- RDM Enabled for remote addressing and trouble shooting
- 5.7° to 36.3° zoom range for variable beam sizes
- TRUE1 compatible power input/output ports
- IP65-rated 5 pin DMX and TCP/IP input/output ports
- IP65-rated USBc software upload port
- Slotted Omega brackets for easy hanging on truss
SPECIFICATIONS
Optical Light Source: 12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy Color Temperature (range): 2700 to 8000 K Beam Angle Spot: 5.7° Beam Angle Flood: 26.8° Beam Angle 50% Zoom: 13.8° Field Angle Spot: 9° Field Angle Flood: 33.9° Field Angle 50% Zoom: 19.2° Cutoff Angle Spot: 9.9° Cutoff Angle Flood: 36.3° Cutoff Angle 50% Zoom: 21.6° Zoom Range: 5.7° to 36.3° Lumens: 5,807 lm Illuminance (Spot) : 38,727 lux @ 5 m Illuminance (Flood) : 1,120 lux @ 5 m Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Dynamic Effects Tilt: 200° Tilt Range: 60°, 180°, 200° Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0 to 20Hz Standalone Color Mixing: No Color Temperature Presets: Yes Dim Modes: 5 Built-in Automated Programs: Yes Customizable Programs: Yes Recall Custom Programs: Yes
Construction / Physical Dimensions: 39.49 x 6.65 x 12.76 in (1,003 x 169 x 324 mm) Weight: 76 lb (34.5 kg) Exterior Color: Black Housing Material: Aluminium die-cast, High-Impact flame-retardant polymer, Steel
Connections Power Connection: Edison (Local) plug to Seetronic Powercon IP65 Power Input: Seetronic Powercon IP65 Power Output: Seetronic Powercon IP65 Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65 Cable Length (power): 5 ft (1.5 m)
Control Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)
Electrical Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz Fuse: F12 A, 250 V
Certifications / Qualifications CE, MET, UKCA, FCC IP Rating: IP65, temporary outdoor/wet use Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
What's Included COLORADO PXL Curve 12 (2) Omega brackets Seetronic Powercon IP65 power cord
Optional Accessories Professional Clamps Neutrik TRUE1 power linking cables 5-pin DMX Cables Ethercon Cables ]
