DPA Microphones 2012 Compact Cardioid Microphone
Details
DPA Microphones 2012 Compact Cardioid Microphone
Great close miking on any instrument on the live stage The 2012 Compact Cardioid Microphone is an all-around generalist pencil mic that guarantees excellent results on any instrument on a live stage.- Durable, reinforced construction
- Excellent transient response
- Uniform cardioid directionality
- Outstanding SPL handling
- Natural and precise sound reproduction

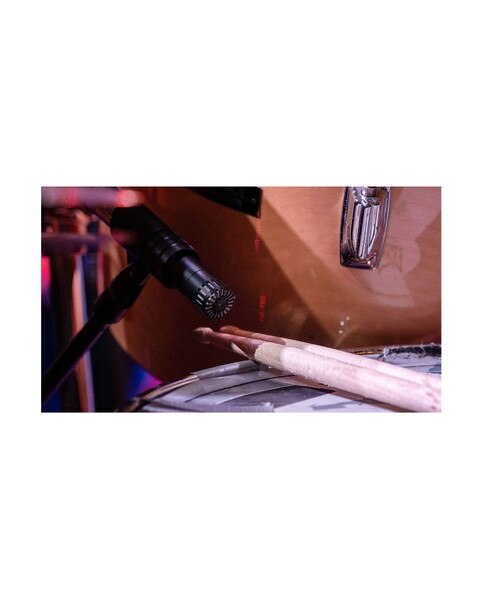

- Snare drum
- Hi-hats

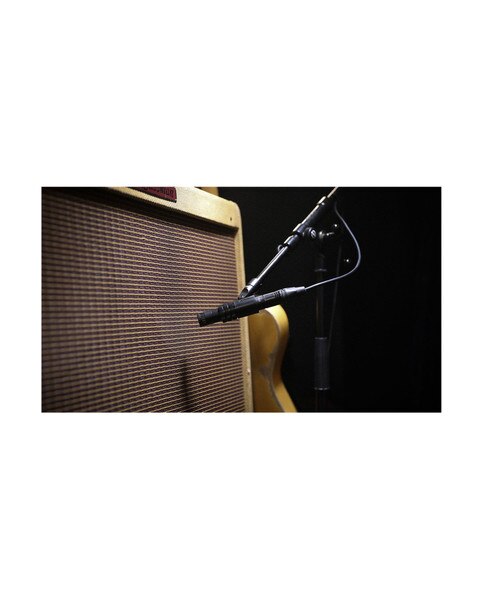

- Electric guitar cabinets
- Piano
- Percussion
- Conga, bongos
- Acoustic guitar
- Horns
Directional pattern - Cardioid
Principle of operation - Pressure gradient
Cartridge type - Pre-polarized condenser
Frequency response - 20 Hz - 20 kHz
Effective frequency range, ±2 dB, at 30 cm (11.8 in) - 40 Hz to 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz - 8 mV/Pa; -42 dB re. 1 V/Pa
Equivalent noise level, A-weighted - Typ. 20 dB(A) re 20 µPa (max. 22 dB(A))
Distortion, THD < 1% - 148 dB SPL (151 dB SPL peak)
Dynamic range - Typ. 131 dB
Max. SPL, THD 10% - 153 dB SPL (156 dB SPL peak)
Switchable attenuator, filters etc - -
Rated output impedance - 60 Ω
Minimum load impedance - 2 kΩ
Cable drive capability - 100 m (328 ft)
Output balance principle - Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) - > 60 dB
Power supply (for full performance) - P48 (Phantom Power)
Current consumption - 0.7 mA
Connector - XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Colour - Matte black
Weight - 83 g (2.9 oz)
Microphone diameter - 19 mm (0.75 in)
Capsule diameter - 17 mm (0.67 in)
Microphone length - 94 mm (3.7 in)
Maximum output voltage, RMS - 8.7 V (21 dBu)
Polarity - +V at pin 2 for positive sound pressure
Temperature range - -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) - Up to 90%
Sensitivity selection tolerance (at 1 kHz) - ±1.5 dB
