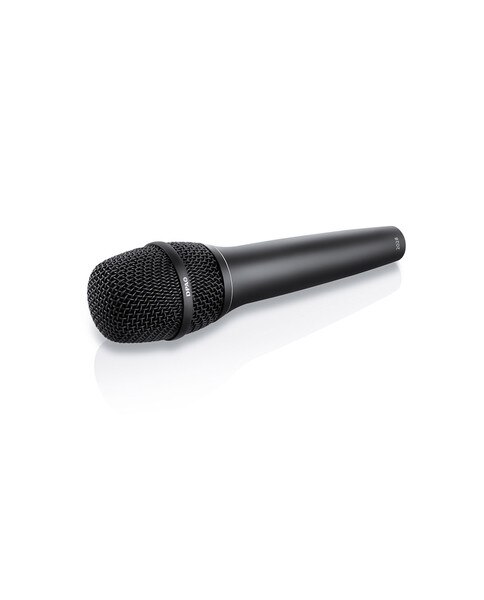

DPA Microphones 2028 Vocal Microphone Wired
2028 Supercardioid Vocal Mic, Wired DPA Handle, Black The 2028 Vocal Microphone is a mic created for the specific challenges of the live stage. This one mic allows you to capture true sound and produce an unforgettable show. Effortlessly. The 2028 Vocal Microphone is designed for the unique challenges of live stage performances. It is a flexible handheld vocal condenser mic, which provides fantastic, transparent vocals to performers from a wide range of markets including live, HoW, broadcast, etc. Use it wired or together with your favorite wireless system, either way, just plug it in and hear the vocals shine like never before.
- Durable mechanical construction
- Reduces feedback issues
- Uniform supercardioid directionality
- Extreme SPL (Sound Pressure Level) handling
- Easy to EQ
Specifications Directional pattern - Supercardioid
Principle of operation - Pressure gradient
Cartridge type - Pre-polarized condenser
Frequency response - 20 Hz - 20 kHz
Effective frequency range ±2 dB, at 12 cm (4.7 in) - 100 Hz - 16 kHz. Permanent 3rd order low-cut filter at 80 Hz
Sensitivity, nominal, ±3 dB at 1 kHz - - 5 mV/Pa; -46 dB re. 1 V/Pa
- 5 mV/Pa; -54 dB re. 1 V/Pa with Adapter for wireless
Equivalent noise level, A-weighted - Typ. 22 dB(A) re. 20 µPa (max. 23 dB(A))
Distortion, THD < 1% - 136 dB SPL RMS, 139 dB SPL peak
Dynamic range - Typ. 117 dB

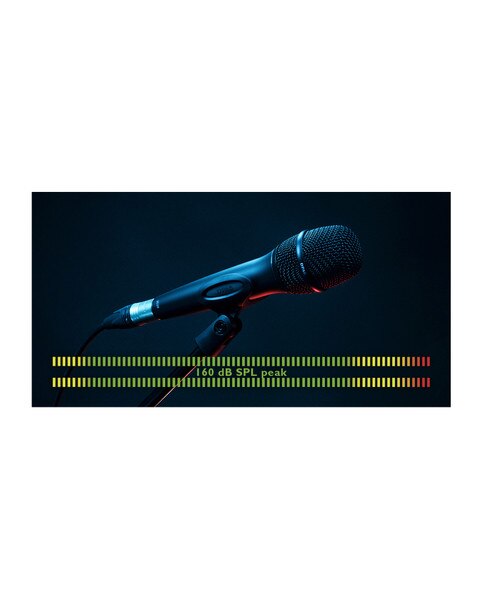

Max. SPL, THD 10% - 160 dB SPL peak
Rated output impedance - 150 Ω
Minimum load impedance - 1 kΩ
Cable drive capability - 100 m (328 ft)
Output balance principle - Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) - > 50 dB at 1 kHz
Power supply (for full performance) - P48 (Phantom Power)
Current consumption - Max 2.5 mA
Connector - XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Colour - Matte black
Weight - 286 g (10.1 oz)
Microphone diameter - 48 mm (1.9 in)
Capsule diameter - 19 mm (0.75 in)
Microphone length - 188 mm (7.4 in)
Maximum output voltage, RMS - 9 Vrms; 19 dBV; 28 dBu
Polarity - +V at pin 2 for positive sound pressure
Temperature range - -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) - Up to 90 %
]
