R6

Compact precision passive fullrange loudspeaker

Two way passive design

Unrivalled headroom

Natural, open and elegant voicing

The EM Acoustics Reference Series of loudspeakers is not simply another iteration of a familiar slim profile form-factor. Rather, the series is the physical result of our ambition to redefine what is possible from a loudspeaker of this kind. A benchmark in physical and sonic elegance, possessing exceptional headroom and stability across all demands, the Reference Series represents the ultimate no-compromise option for point source applications.

Unique crossover approach combined with FIR for unrivalled impulse response

Interchangeable wide (110 x 50) and narrow (80 x 50) rotatable waveguides

2 x 6.5″ neodymium LF, coaxial 3″/2″ MF/HF drive units

Flexible rigging and mounting options

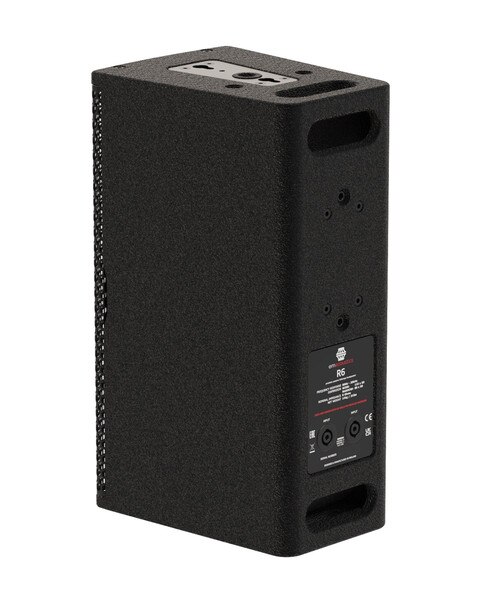

Impact and weather-resistant black or white textured finish as standard

RAL colour and enhanced weather protection options

Expanding the Reference Series still further, the R6 is a 3-way passive system engineered to convey the elegance, performance and headroom of the Reference Series in a compact, discreet and versatile package. Intended to bridge the application gap between the R5 and R8, the R6 retains the same DNA as its siblings, delivering truly abundant audio that defies its physical size, making it perfect for powerful front fills and delays in theatres, sleek speech reinforcement in a corporate or audio/ visual setting, or subtle and sympathetic deployment in Houses of Worship. A surprising overall output that defies its physical size, the R6 is also capable of discreet front-of-house reinforcement in smaller live music settings.

The slim enclosure houses a pair of bespoke state-of­-the-art 2″ (51mm) voice coil 6.5″ (165mm) neodymium LF drive units, and a 3″ (76mm)/2″ (51mm) coaxial MF/HF compression drive unit. This MHF unit is a scaled-down version of the unit in the larger Reference Series loudspeakers, and as such retains both the sonic character as well as the ultra-low harmonic distortion levels that the Reference Series has become renowned for throughout the industry. These drive units are fed via a unique 2-way crossover topology, minimising off-axis parallax and lobing effects whilst retaining consistency of sonic character right across the operating range.

In keeping with the other Reference Series models, the R6 is supplied with two bespoke waveguide options – 80 x 50 and 110 x 50 – giving unrivalled flexibility and return on investment for rental users and installation applications alike.

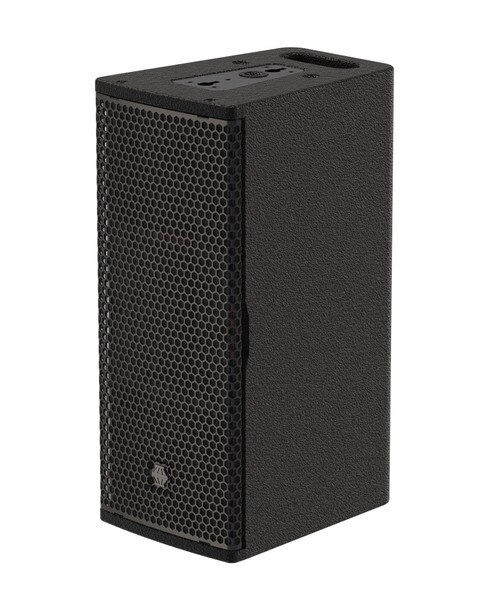

In common with the rest of the series, the installed waveguide type and orientation are visible without removing the front grille. The use of intelligent bracing means the R6 retains the longevity and sonic advantages of a genuine plywood enclosure, whilst keeping weight remarkably low. The Birch plywood enclosure is coated in an impact and weather-resistant polyurethane finish which enables the R6 to stand up to harsh conditions and tough touring regimes.

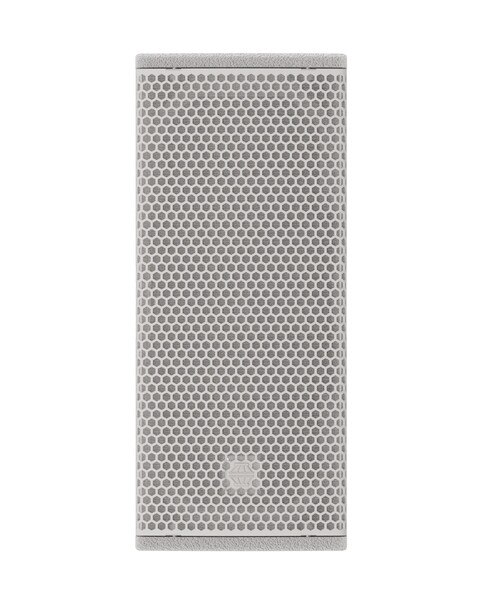

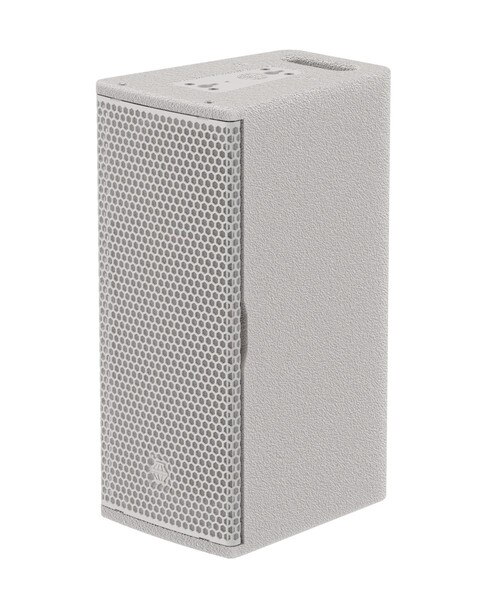

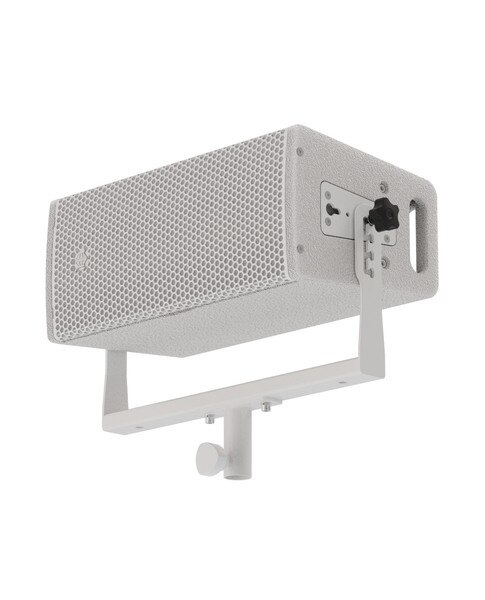

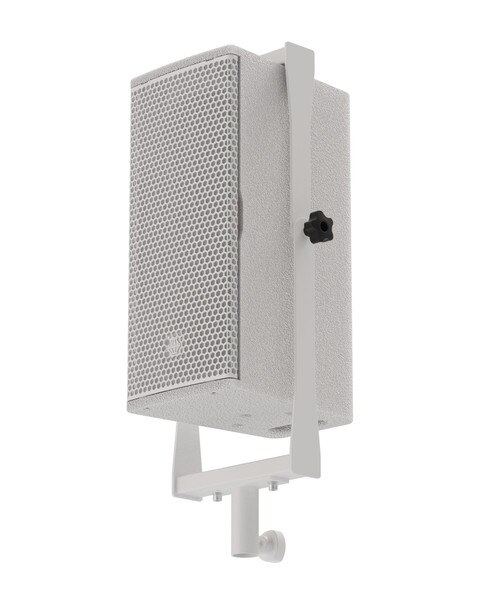

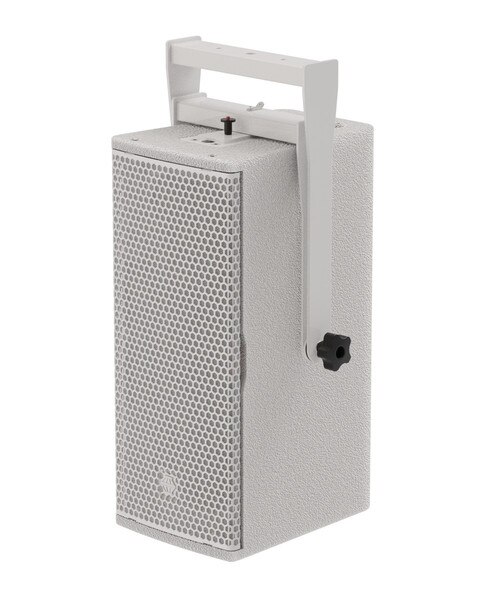

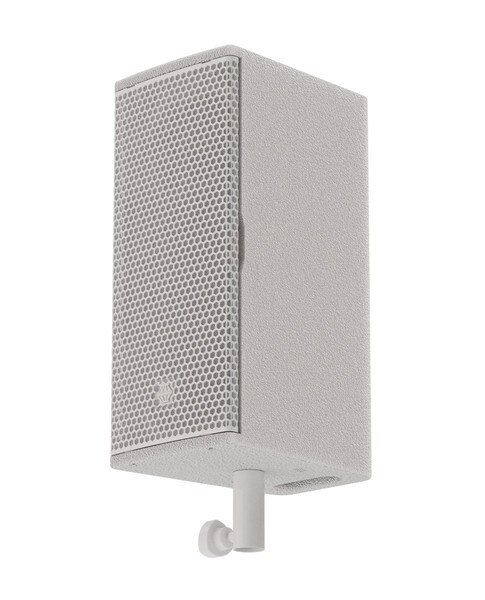

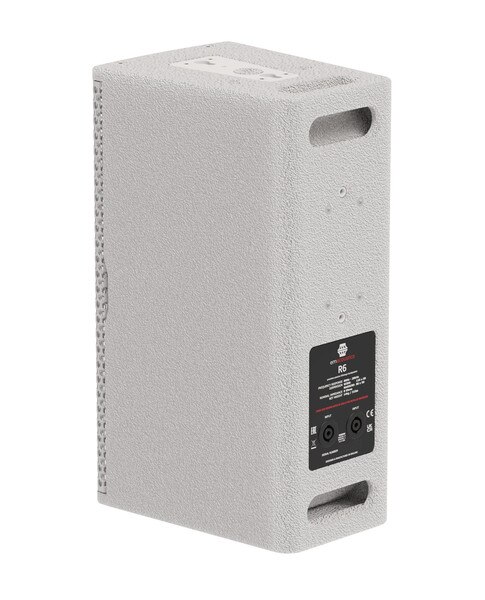

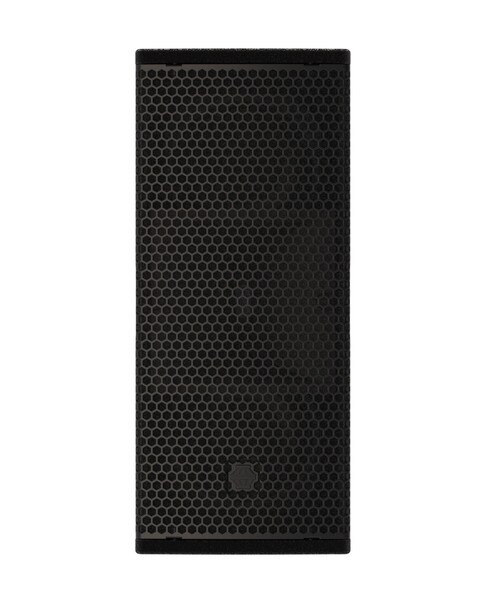

The finish is available in both black and white as standard, with custom RAL colour matching options and permanent outdoor enhancements also available. The front grille and flying plate are manufactured from stainless steel for an enhanced lifespan, and the grille is backed by an acoustically transparent fabric to complete the discreet appearance of the unit.

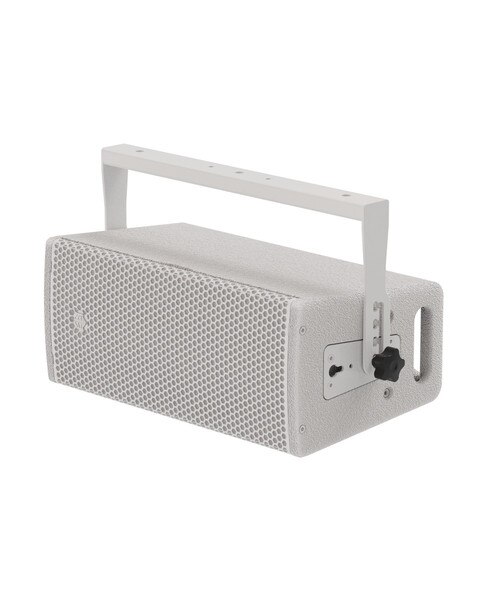

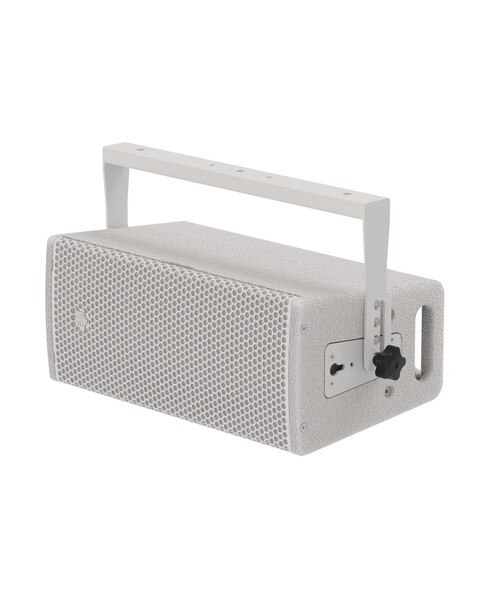

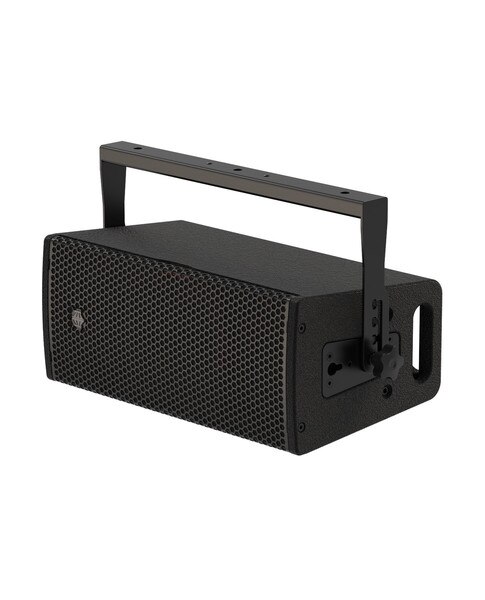

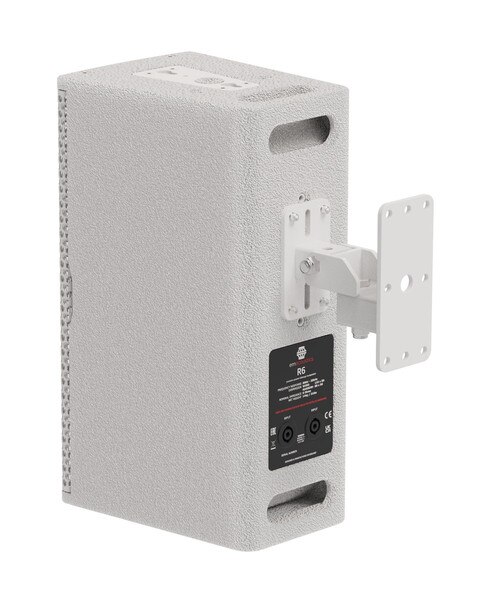

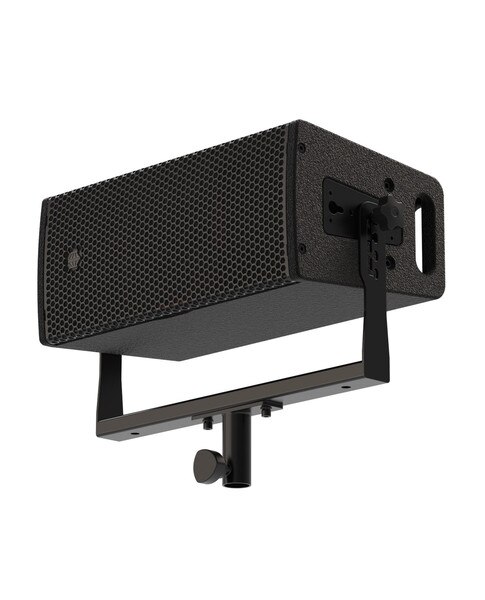

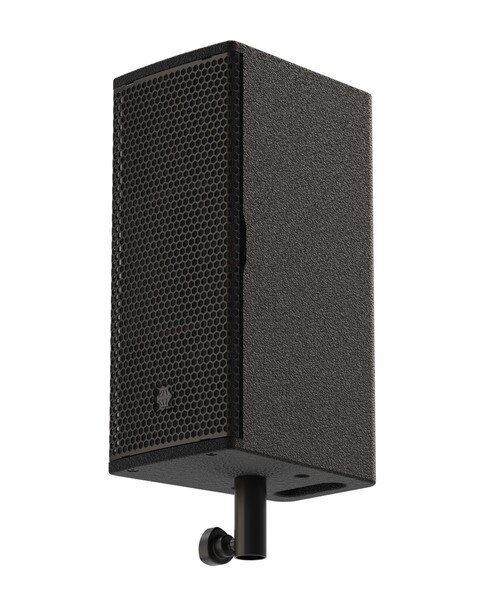

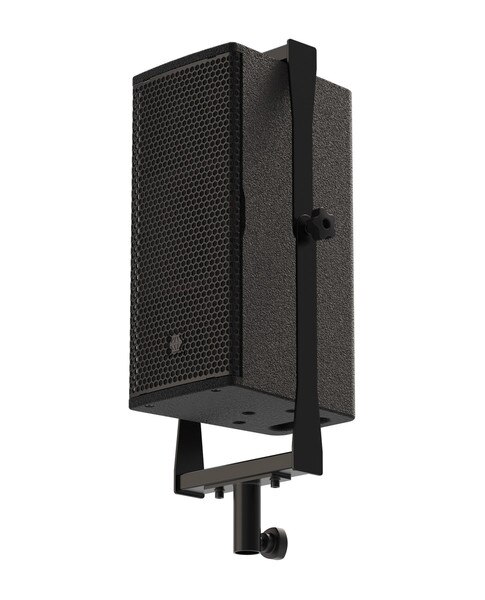

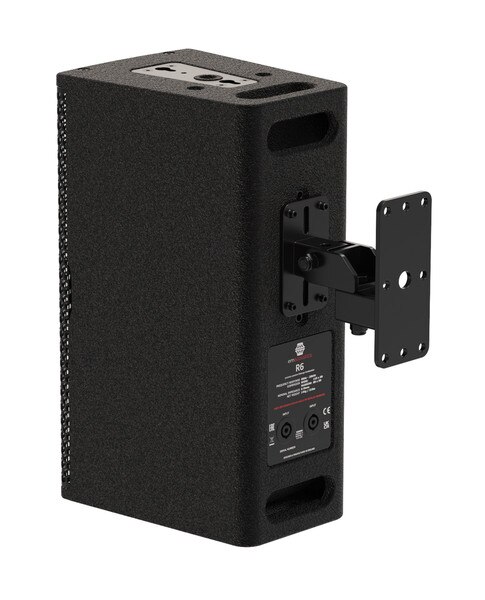

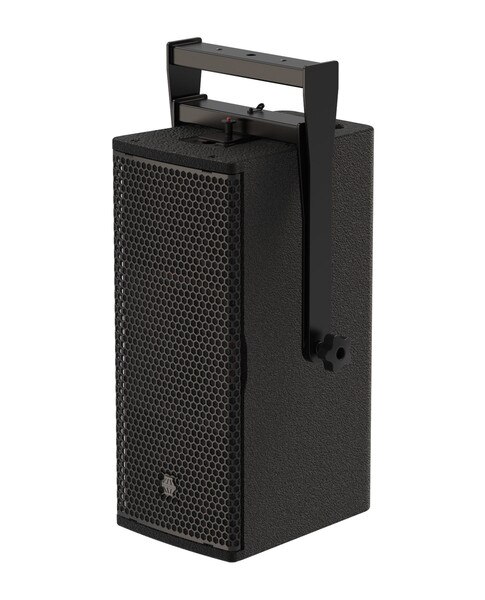

Innovative quick-release attachments, allowing rapid tool-free connection of flying hardware, along with threaded rigging points, allow suspension and installation using a variety of different methods. The architecture and construction of the R6 combined with EM Acoustics’ state-of-the-art FIR processing liberates each component to achieve levels of sonic performance never yet attained by a loudspeaker of this size and form factor.
