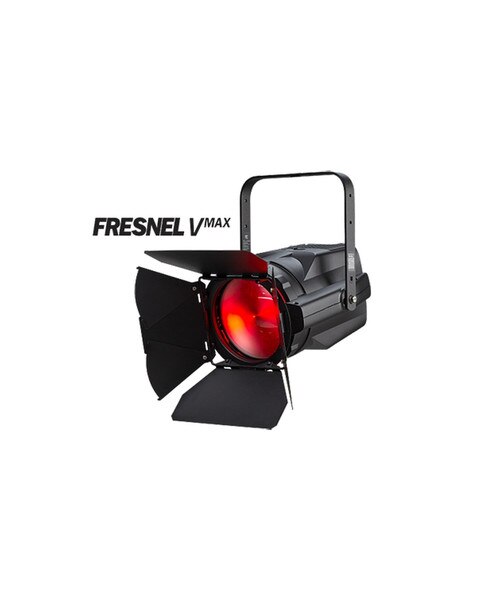

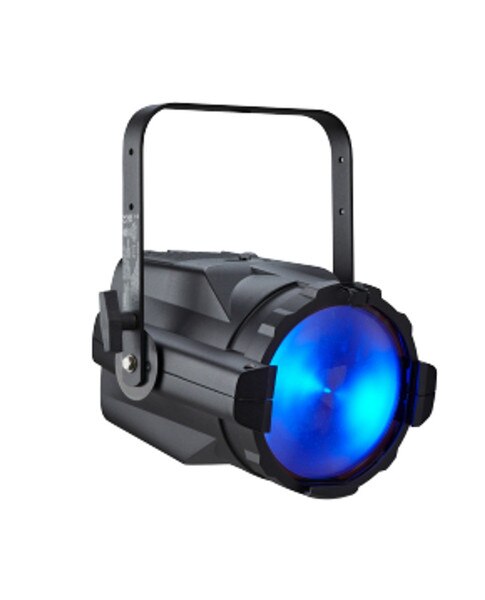

ETC ColorSource Fresnel V MAX

ETC ColorSource Fresnel V MAX

The ColorSource Fresnel V MAX is a powerful LED luminaire designed by industry experts known for high-quality fixtures. Doubling the output of the ColorSource Fresnel V, it delivers exceptional brightness while maintaining rich colour and advanced technology at an affordable price. Featuring a five-colour array of red, green, blue, indigo, and lime, it produces both soft pastels and deep, saturated hues. Its motorized 13°–44° zoom can be controlled via DMX or adjusted manually from the fixture’s rear. With Multiverse wireless DMX/RDM, NFC configuration, and enhanced brightness, the ColorSource Fresnel V MAX sets a new standard for cost-effective wash lighting.

ETC ColorSource Fresnel V MAX Applications

Theatres and performance spaces

Houses of worship

Universities and schools

Hospitality

Retail

Exhibition centres

Meeting rooms

Clubs

Cafes

ETC ColorSource Fresnel V MAX Features

Five-colour array (red, green, blue, indigo, and lime)

Motorized 13–44 degree zoom with DMX and local control

Simple user interface with seven-segment display

powerCON TRUE1 TOP connector

DMX/RDM in and thru (5-pin XLR)

Multiverse wireless DMX/RDM

NFC (near field communication) configuration

LED droop compensation

Optically calibrated

Tour-ready, aluminium housing

ETC ColorSource Fresnel V MAX Specifications

Source

LED details: 60 Lumileds LUXEON® C ES LEDs

Max lumens: 10,023

Lumens per watt: 48

L70 rating (hours to 70% output): 54,000 hours

Colour

Colours used: Red, Green, Blue, Indigo, Lime

Colour temperature range: Colour mixing

Calibrated array: Yes

Red shift: No

Optical

Beam angle range: 13°–44°

Gate size: N/A

Aperture size: 190 mm (7.48 in)

Pattern projection: No

Pattern size: N/A

Camera flicker control/Hz range: 5,000 Hz (default) and 25,000 Hz (via RDM)

Control

Input method: 5-Pin XLR, Multiverse wireless, and NFC

Protocols: DMX-512, RDM, City Theatrical Multiverse, NFC

Modes (footprint): 6 modes, see page 6

RDM configuration: Yes

UI type: Seven-segment display, three-button interface, Focus encoder

Local control: Yes

Onboard presets: Yes (12)

Onboard sequences: Yes (5)

Onboard effects: No

FixtureLink: Yes

Notes: 15-bit virtual dimming engine

Wireless

Band: 2.400–2.480 GHz

Range: 100 m indoors, 500 m line of sight (subject to conditions)

Max receivers:

DMX: No limit

RDM: Varies by transmitter used

Multiverse SHoW Baby®: 585

Multiverse Transmitter: 5,000

Broadcast power: 100 mW

Electrical

Voltage range: 100–240 VAC 50/60 Hz

Input method: powerCON TRUE1 TOP power in and thru

Inrush (first half-cycle):

120 V: 36 A

240 V: 57 A

Fixtures per circuit on standard R20 breaker: 3 (link up to 4 via Power Thru connector)

Note: TRUE1 connector rated for

20 A (120 V / 60 Hz) and

16 A (240 V / 50 Hz)

Wattage (typical):

120 V: 208 W

230 V: 205 W

Current draw:

120 V: 1.75 A

230 V: 0.95 A

Thermal

Ambient operating temp: 0°C–40° C (32°F–104° F)

Fan (controllable): Yes (yes)

Droop compensation: Yes

Average dB: TBD dBA

BTUs/hour (120 V): 709

Physical

Materials: Cast and extruded aluminium

Colour options: Black, white, silver, or custom colour

Mounting options: Yoke

IP rating: IP20

Weight: 6.24 kg (13.75 lb)

Included accessories: Yoke, power cable

Warranty

Fixture: 5 years

LED array: 10 years

Regulatory and Compliance

Approved regulatory standards:

cETLus Listed

Conforms to UL 1598 & 924

Complies to CSA C22.2 No. 250.0 and 141

CE & UKCA compliant
