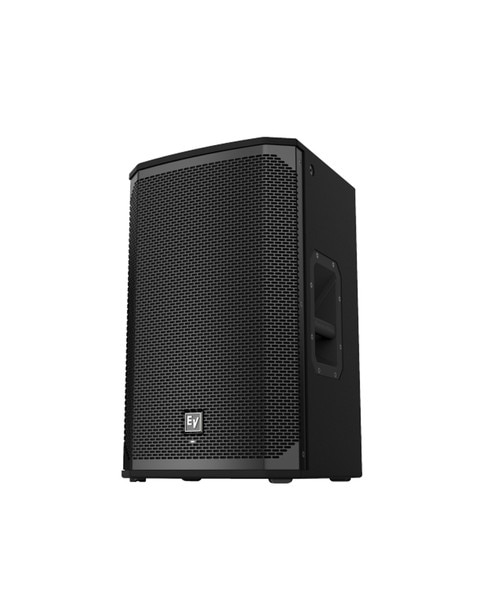

EV EKX-12 Passive Loudspeaker

(0)No Reviews yet

Features

EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

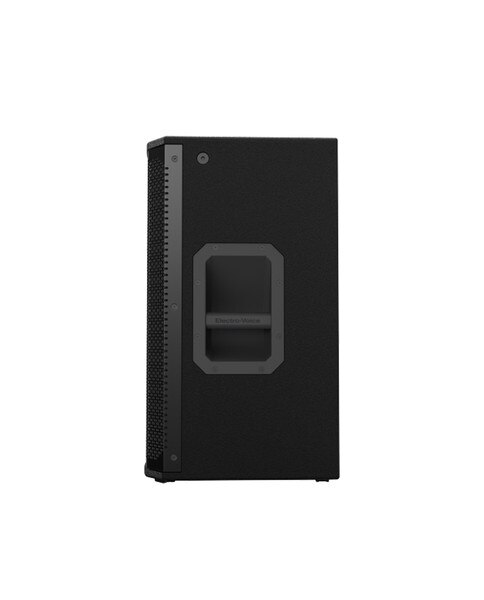

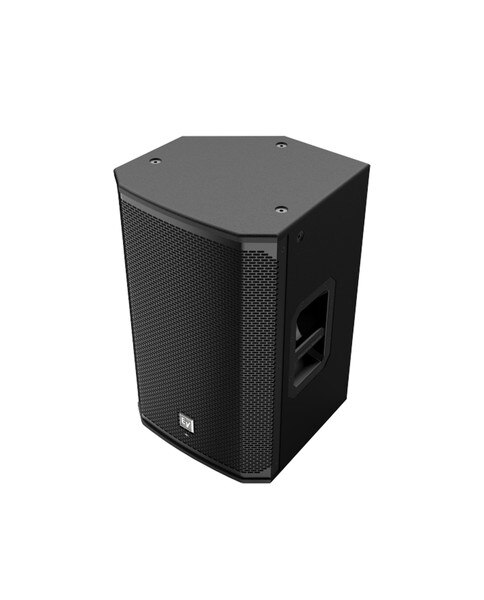

Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Specifications

Depth	14.02" (356mm)
Width	14.76" (375mm)
Height	23.9" (607mm)
Suspension	(8) M10 threaded mounting points
Grille	18 AWG steel with powdercoat
Enclosure Material	15 mm, plywood with EVCoat
Connector Type	Dual NL4
Minimum Impedance	7.5Ω
Crossover Frequency	1.6 kHz
HF Transducer	DH-1M 1-inch titanium compression driver
LF Transducer	EVS-12M 300 mm (12 in)
Coverage (Nominal -6 dB) H	90°
Max. SPL/1m (calc)	131dB
Recommended High-Pass Frequency	55Hz
Frequency Response (-3 dB)	82 Hz - 18 kHz (Full Space Measurement)
Axial Sensitivity (SPL, 1 W @ 1 m)	95dB
Power Rating	1400W
Woofer Size	12inch
Power Handling (Continuous / Peak)	350 W/1400W
Maximum SPL	131dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
Powered or Passive	Passive
Passive Power Handling	1400W peak
Family	EKX
Speaker Type	Full-Range, two-way
Nominal Impedance	8Ω

]
