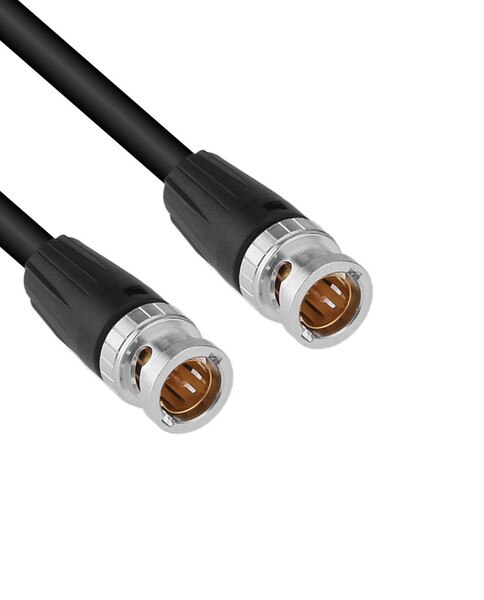

Eurocable SDI Cable
\n \n \nHDTV cables designed following SMPTE specs for SDI and HDTV video distribution. Coaxial cable RG6 features a gas injected technology. This cable has a very low attenuance even at highest frequencies and it is primarily indicated when signal transmission distance to cover is considerable. \n
\n - Designed following SMPTE specs for SDI and HDTV video distribution
\n - For long distance signal transmissions
\n - Double shielded
\n - Gas injected technology
\n - Primarily indicated when signal transmission distance to cover is considerable
\n - Terminated with Neutrik NBNC75BTU11 Connectors
\n - Eurocable RG6 75 Ohm CVS LKRG6DS Cable
\n
\n \n \nMaximum Transmission Distance \n
\n - 143 Mb/s | SMPTE259M-A | Composite NTSC | SD-SDI | 575 meters
\n - 177 Mb/s | ITU-R BT .601 | Composite PAL | SD-SDI | 525 meters
\n - 270 Mb/s | SMPTE 259M-C | Component Video | SD-SDI | 440 meters
\n - 360 Mb/s | SMPTE 259M-D | Component Widescreen | SD-SDI | 380 meters
\n - 540 Mb/s | SMPTE 344M | Enhanced Definition TV | EDTV | 310 meters
\n - 1.485 Gb/s | SMPTE 292M | 1080i/60 - 1080p/30 | HD-SDI | 125 meters
\n - 2.97 Gb/s | SMPTE 424M | 1080p/50 - 1080p/60 | 3G-SDI | 75 meters
\n
\nAlso tested for 12G up to 50m
