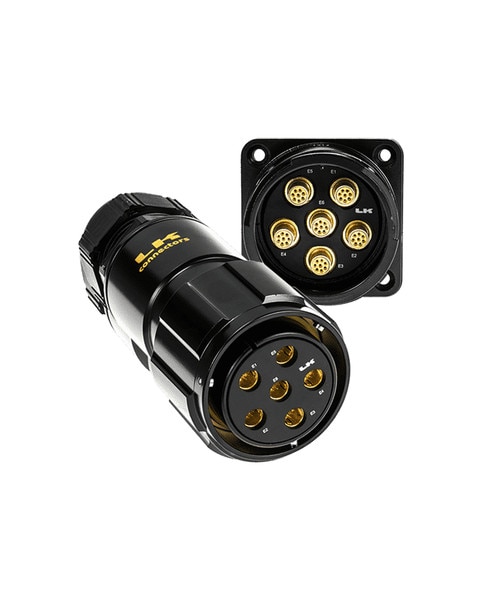

LK Connectors LKG Multi-CAT6 Connectors
LKG multi-CAT6 connectors are ideal for Broadcast, Entertainment, Medical, Industrial, and Military applications that require multiple CAT6 connections. Link’s extensions, built with LKG connectors and specially designed Eurocable cables, can transmit multiple high-speed data signals in a single cable, thus eliminating the use of additional cables and optimizing connection times.
- 4 or 6 CAT6 connections
- High quality CAT6 circular contacts
- Easy and error-free mating for fast connections
- Fast LinkLock backshell
- Excellent resistance against accidental unlocking caused by shocks and vibrations
- Audible snap in quick bayonet lock
- Cable version with easy-grip long metal locking ring
- Roller studs for easier coupling
- Body made of high quality aluminium
- Guaranteed for over 2000 coupling operations
Additional Information| Contacts - Data | 4, 6 |
|---|
| Connector Color | Black |
|---|
| Gender | Female, Male |
|---|
| Connector Type | Line, Panel |
|---|
| Connector Size | 32 |
|---|
| IP Rating | IP68 |
|---|
| Locking ring | Black metal, Black rubber, Blue rubber, Yellow rubber, Red rubber, Green rubber |
|---|
| Pin Coating | Gold |
|---|
| Signal | Data |
|---|
] ] ]
