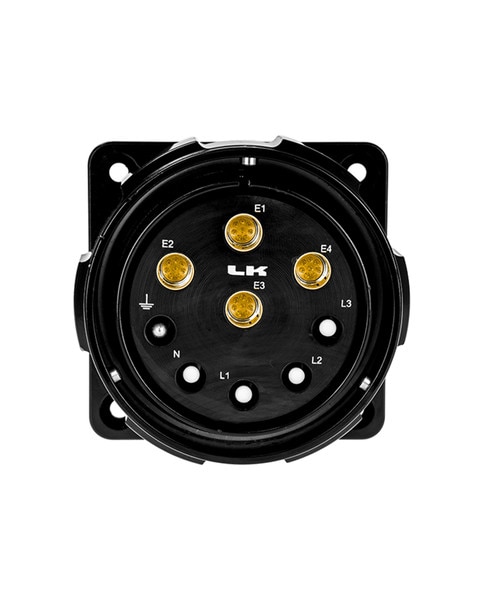

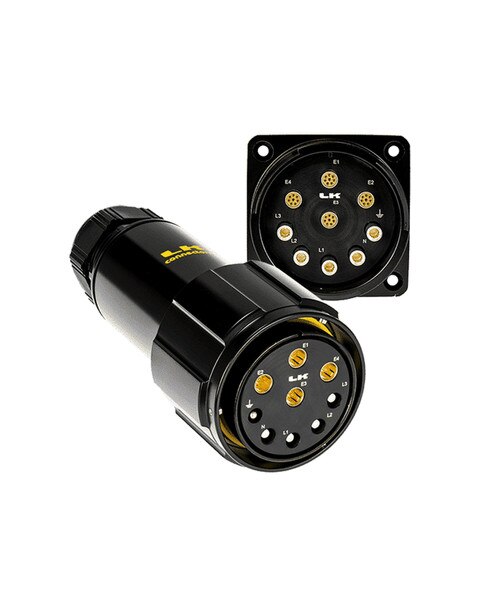

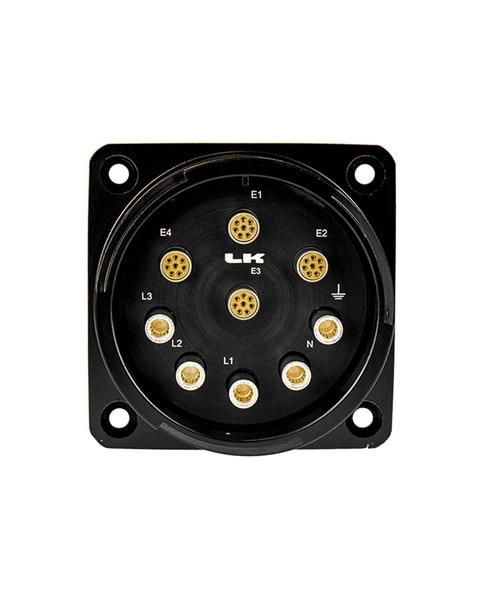

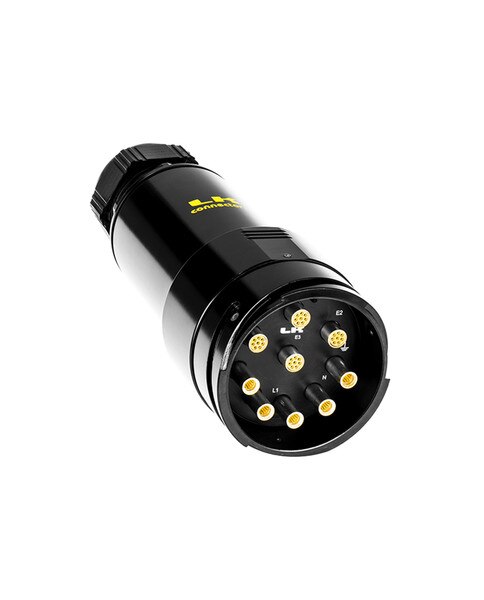

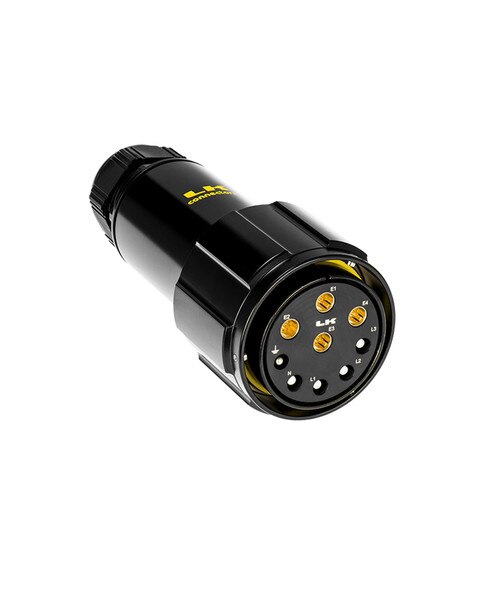

LK Connectors LKG-T-32-4E Hybrid Multi-CAT6 Power Connectors

LK Connectors LKG-T-32-4E Hybrid Multi-CAT6 Power Connectors

LKG hybrid multi-CAT6 plus audio and power connectors are ideal for Broadcast, Entertainment, Medical, Industrial, and Military applications that require multiple CAT6 connections with audio and a single phase 20A power line. Link’s extensions, built with LKG connectors and specially designed Eurocable cables, can transmit high-speed data, audio signals and power in a single cable, thus eliminating the use of additional cables and optimizing connection times.

• 2 CAT6 connections plus 2 audio channels plus power
• High quality CAT6 circular contacts
• Easy and error-free mating for fast connections
• Fast LinkLock backshell
• Excellent resistance against accidental unlocking caused by shocks and vibrations
• Audible snap in quick bayonet lock
• Cable version with easy-grip long metal locking ring
• Roller studs for easier coupling
• Body made of high quality aluminium
• Guaranteed for over 2000 coupling operations

Additional Information

Contacts - Data	2
Channels - Audio	2
Pin Size	18
Contacts - Power	3
Pin Size - Power	12
Connector Color	Black
Gender	Female, Male
Connector Type	Line, Panel
Connector Size	24
IP Rating	IP68
Locking ring	Black metal, Black rubber, Blue rubber, Yellow rubber, Red rubber, Green rubber
Pin Coating	Gold
Signal	Audio, Data, Power

] ] ]
