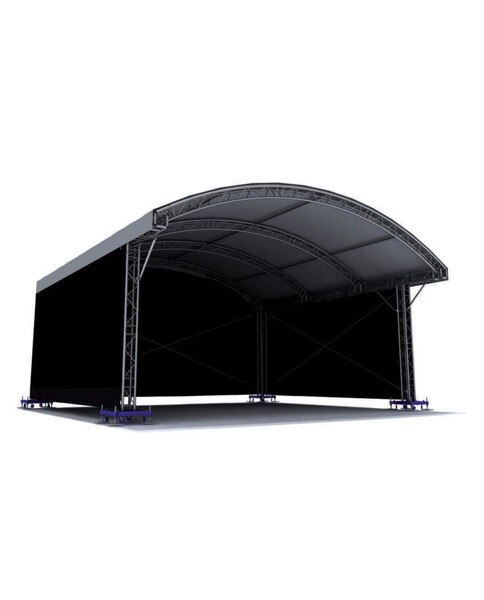

Milos MR1 Arched Roof
The MR1 roof was created with small bands or street festivals in mind. Its special arched aluminium roof, which serves as the frame, gives it a dynamic look while allowing water to easily drain from the canopy. No more hassles with water pockets and problems associated with water build-up. It's a temporary roof which provides you with a permanent solution.
Sizes
Key Benefits
- 6x4 m (19.69x13.12 ft) & 8x6 m (26.25x19.69 ft) Arched Roofs set-up for temporary events
- Heavy-duty M290 Quatro structure with Trio arches
- Fixed leg or self-climbing MT1 option 8x6 m only (26.25x19.69 ft)
- Fast connection for quick, simple and secure assembly
- Supplied complete with internal wind bracing wires & connection accessories
- Full structural calculation report & build manual available
- Conversion kit parts available to upgrade from 6x4 m to 8x6 m
- PVC roof colour and side walls options
- PA wing options available on request
Technical information
- Max Stage Dimensions: 8m x 6m
- Max SWL: 540kg
- Max Clearance: 5.96m
- Wind Rating: 64/100 km/h (in/out of service)
]
