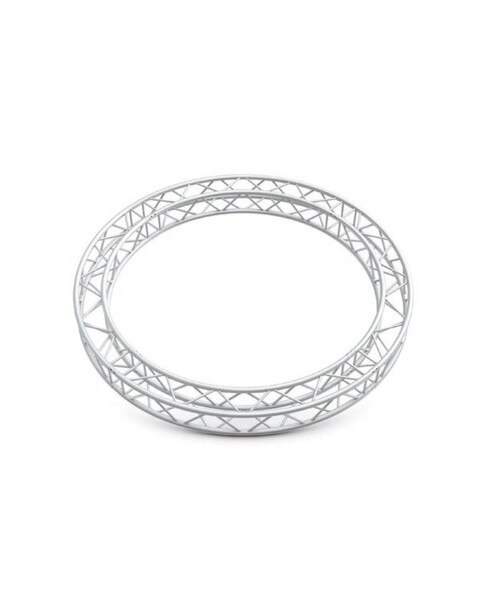

Milos Quatro Circle
- Curved profiles add bespoke style to any area or exhibit
- Precision CNC rolling process to create any radius from 750mm upwards
- Fast connection for quick, simple and secure assembly
- Powder coat colour finish available on request
- No maximum diameter limit
- Minimum diameter is 1.4m (4.6')
- Longest curved segment is 3.2m (10.5')
- Increments of four (4) allow the most reconfiguration flexibility. This also allows a circle to be used complete, as 1/4, 1/2, 3/4 or together with standard straight truss and junctions.
- Multiple choices for segment configuration
| Series | Outer Diameter | Segments |
| M290 | D 3m (9.84’) | 4 |
| M290 | D 4m (13.12’) | 4 |
| M290 | D 5m (16.40’) | 8 |
| M290 | D 6m (19.69’) | 8 |
| M290 | D 8m (26.25’) | 8 |
| M390 | D 4m (13.12’) | 4 |
| M390 | D 5m (16.40’) | 8 |
| M390 | D 6m (19.69’) | 8 |
| M390 | D 8m (26.25’) | 8 |
| M390 | D 10m (32.81’) | 12 |
