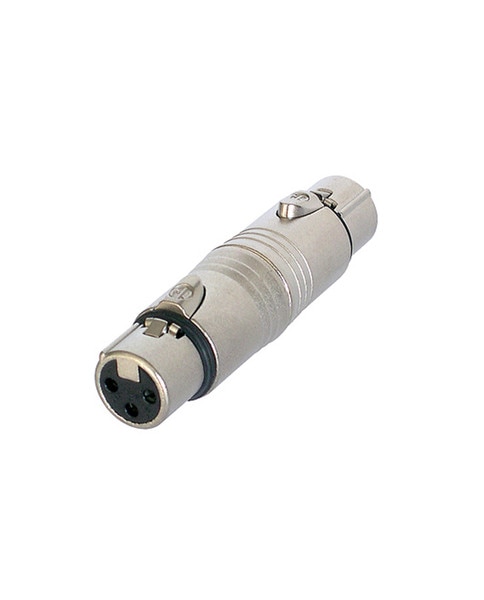

Neutrik NA3F5F DMX Adaptor: 3-Pin Female / 5-Pin Female

Neutrik NA3F5F DMX Adaptor: 3-Pin Female / 5-Pin Female

3 pole XLR female - 5 pole XLR female (gender conversion adapter) HIGHLIGHTS

• Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
• Professional look and compact space saving design, based on the XX Series
• Rugged diecast shell for best reliability.

Electrical

• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GΩ
• Rated current per contact: 3 A

Mechanical

• Insertion force: < 20 N
• Withdrawal force: < 20 N
• Lifetime: > 1000 mating cycles
• Locking device: Latch lock

Material

• Contact plating: 2 µm Ag
• Contacts: Brass (CuZn39Pb3) (5 pole female)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel

Environmental

• Temperature range: -30 °C to +80 °C
