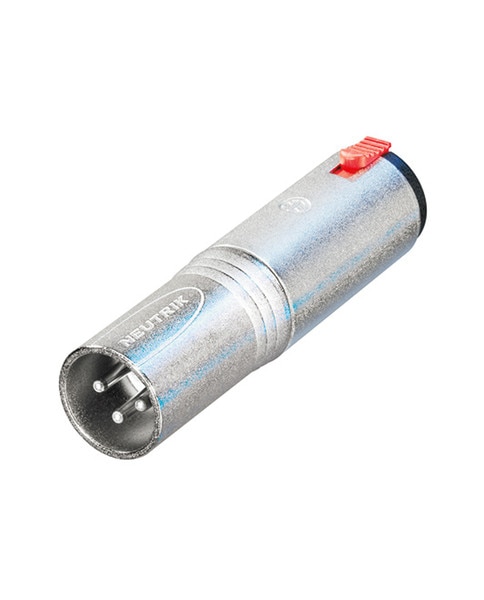

Neutrik NA3MJ XLR Male to Stereo Locking Jack
3 pole XLR male - stereo 1/4" locking jack (Tip, Ring, Sleeve contact)
HIGHLIGHTS- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the XX XLR Series
- Rugged diecast shell for best reliability
Electrical- Contact resistance: ≤ 3 mΩ (XLR)
- Contact resistance: ≤ 6 mΩ
- Dielectric strength: 1.5 kV dc / > 1 kVdc (XLR/Jack)
- Insulation resistance: > 2 GΩ
Mechanical- Locking device: Latch lock
Material- Contact plating: 2 µm Ag
- Contacts: Bronze (CuBe2) (jack)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: gal Cu/Ni
Environmental- Temperature range: -20 °C to +65 °C
