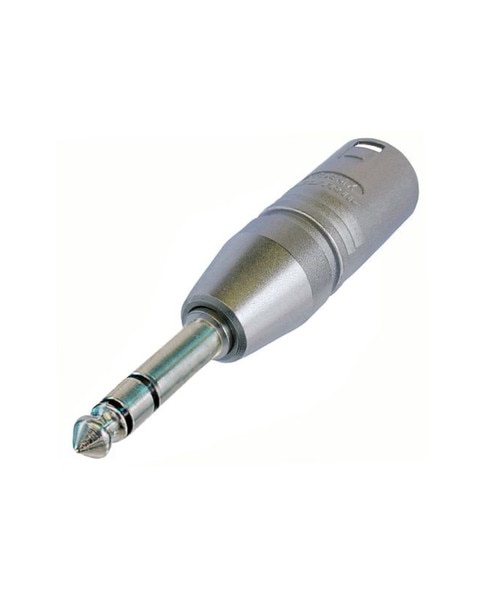

Neutrik NA3MP XLR Male to Stereo 6.5MM Plug

Neutrik NA3MP XLR Male to Stereo 6.5MM Plug

• Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
• Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
• Rugged diecast shell for best reliability

• Contact resistance: ≤ 3 mΩ (XLR)
• Contact resistance: ≤ 6 mΩ
• Dielectric strength: 1.5 kV dc / > 1 kVdc (XLR/Plug)
• Insulation resistance: > 2 GΩ

• Locking device: Latch lock

• Contact plating: 2 µm Ag over 2 µm Ni
• Contacts: Brass (CuZn39Pb3) (plug)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: gal Cu/Ni

• Temperature range: -20 °C to +65 °C
