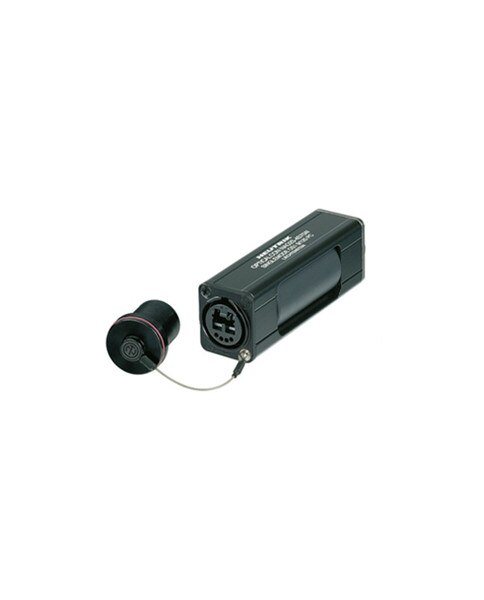

Neutrik NAO2M-H1W-A Coupler: LC-Duplex Multimode PC - Water-Resistant acc. to IP65
Weatherproof opticalCON DUO coupler (adapter) LC-Duplex for cable extensions with 4 copper wires (0.75 mm²).
HIGHLIGHTS- Fiber Mode: multi-mode PC
- Color Coding: Black
Electrical- Contact resistance: < 7 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Rated current per contact: 6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A)
- Rated voltage: < 50 V (1)
Mechanical- Insertion force: < 45 N
- Withdrawal force: < 45 N
- Lifetime: > 1000 mating cycles
- Locking device: Push-Pull
Material- Contact plating: 0.2 µm Au over 2 µm Ni
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
- Shell: AlMgSi 0.5, black plated
- Split sleeve: ceramics
Environmental- Temperature range: -30 °C to +80 °C
Optical- Insertion loss: < 0.4 dB / connection
- Optical connector: LC-Duplex
]
