Neutrik NBB75DSIB Flush-Mount BNC / Solder Pins: D-Size, Isolated, Black Shell

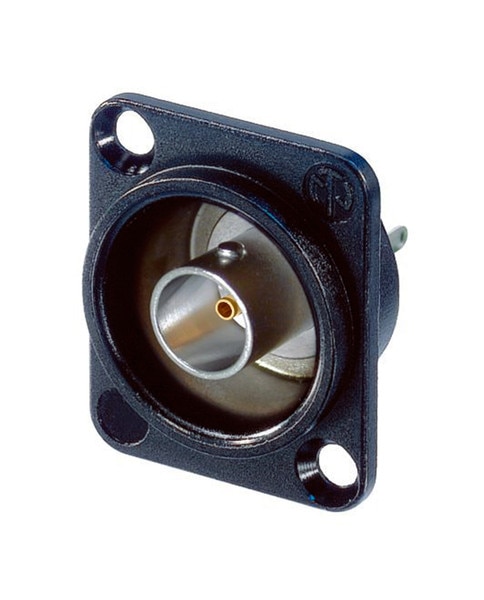

Isolated BNC chassis connector, solder version in black D-shape housing Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).
HIGHLIGHTS- Gold plated center contact
- True 75 Ω design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Standard D-shape housing - provides flush mounting and protection from damage
- Color coding possible
ELECTRICAL- Signal Type: HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV
- Contact resistance: ≤ 3 mΩ (inner)
- Contact resistance: ≤ 2 mΩ (outer)
- Dielectric strength: 1,5 kVdc
- Impedance: 75 Ω
- Insulation resistance: > 5 GΩ
- Rated voltage: <50 V
- VSWR:
- ≤1.03/>37 dB up to 1 GHz
- ≤1.05/>32 dB up to 2 GHz
- ≤1.08/>28 dB up to 3 GHz
MECHANICAL- Insertion force: < 25 N
- Lifetime: > 1000 mating cycles
- Wiring: Solder contacts
- Locking device: Bayonet
- Mounting direction: Front mounting
- Chassis shape: D
MATERIAL- Contacts: Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
- Insert: PTFE
- Shell: Polyacetal (POM) (Insulation Shell)
- Shell plating: Optalloy®
- D-Shape housing: Zinc diecast (ZnAl4Cu1) gal black chrome plating
ENVIRONMENTAL- Temperature range: -30 °C to +85 °C
