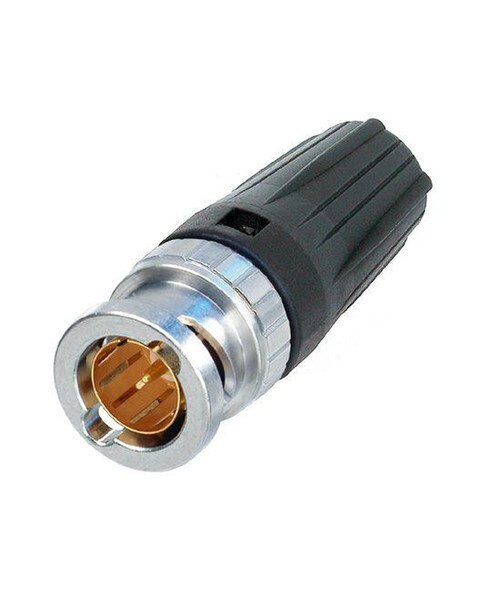

Neutrik NBNC75BLP9 Suits Canare L-4CFB, Belden 1505A, Commscope 5565 etc
The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Argosy Image 720, Belden 1505A (ANH), Belden 4505R, Belden 8241F, CAE HD08370LSZH, Canare L-4CFB, Clark Wire CD7559-0, Clark Wire CD7559F-0, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F), Percon VK6 Crimp size: Pin: 1.6 mm (square) Shield: 6.47 mm (hex)
HIGHLIGHTS- “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front
- True 75 Ω design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
ELECTRICAL- Contact resistance: ≤ 3 mΩ (inner)
- Contact resistance: ≤ 2 mΩ (outer)
- Dielectric strength: 1,5 kVdc
- Impedance: 75 Ω
- Insulation resistance: > 5 GΩ
- Rated voltage: <50 V
- VSWR:
- ≤1.050/>32 dB up to 1 GHz
- ≤1.065/>30 dB up to 2 GHz
- ≤1.100/>26 dB up to 3 GHz
MECHANICAL- Cable O.D.: 6.3 mm
- Cable retention: > 30 N (Center)
- Crimp size: 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
- Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
- Insertion force: < 25 N
- Lifetime: > 1000 mating cycles
- Locking device: Bayonet
- Cable anchoring: Jacket crimping
MATERIAL- Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
- Insert: PTFE
- Shell: Brass (CuZn39Pb3)
- Shell plating: Optalloy®
ENVIRONMENTAL- Temperature range: -30 °C to +85 °C
- Contact crimpability: Complies with IEC 60803 and IEC 60352-2
