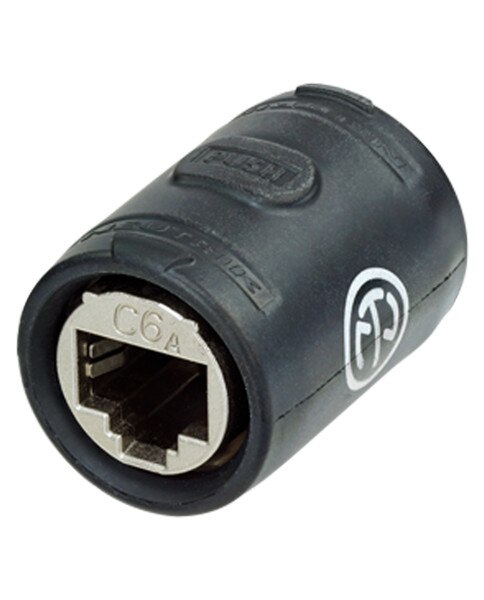

Neutrik NE8FFX6-W CAT6A Feedthrough coupler for cable extensions
etherCON CAT6A feedthrough coupler for cable extensions.
HIGHLIGHTS- Ruggedized coupler with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- IP65 protected when mated with NE8MX6*
- Accommodates standard RJ45 plug
- Revolutionary small form factor
- The adapter offers the million-fold proven robust latch lock system
- The adapters are problem solvers for various intermating problems for professional and semi-professional applications
ELECTRICAL- Contact resistance: < 200 mΩ
- Dielectric strength: > 1.5 kVdc
- Insulation resistance: > 0.5 GΩ
- Rated current per contact: 1.5 A
- Transmission performance:
- CAT6A, acc. TIA/EIA rating
- Class EA, acc. IEC/ISO/EN rating
- Power over Ethernet: PoE+ acc. IEEE 802.3at
MECHANICAL- Insertion force: ≤ 50 N
- Withdrawal force: ≤ 50 N
- Lifetime: > 1000 mating cycles
- Wiring: Feedthrough
- Locking device: Latch lock
MATERIAL- Contact plating: Au
- Shell: Rubber (EPDM)
- Strain relief: CuZn35Pb2, Tin plated
ENVIRONMENTAL- Temperature range: - 30 °C to + 80 °C
- Protection class: IP65 (in combination with NE8MX*)
