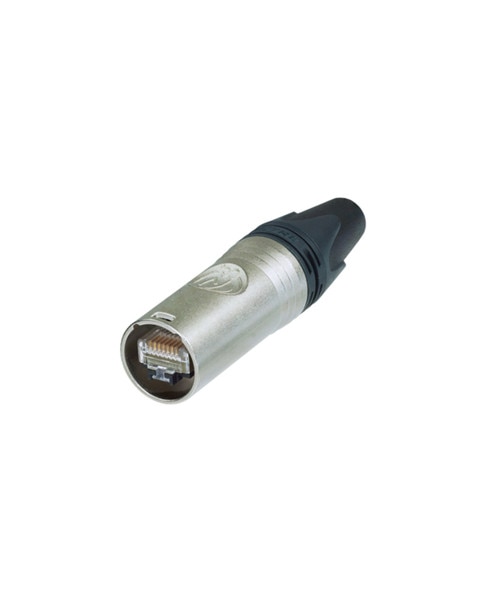

Neutrik NE8MX6-T Ethercon RJ45 Plug Nickel

etherCON CAT6_A cable connector self-termination, for insulation diameter ≤ 1.1 mm, nickel plating

The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6_A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG26/1 - AWG24/1 (solid) or AWG27/7 - AWG24/7 (stranded).

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

If the insulation diameter is > 1.1 mm please refer to NE8MX6.

Features & Benefits

• Ruggedized connector with CAT6_A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
• PoE++ compliant according to 802.3bt Type4
• IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
• Rugged latch lock system million fold proven
• Intermateable with the existing etherCON CAT5 range
• Unique Neutrik chuck-type strain relief
