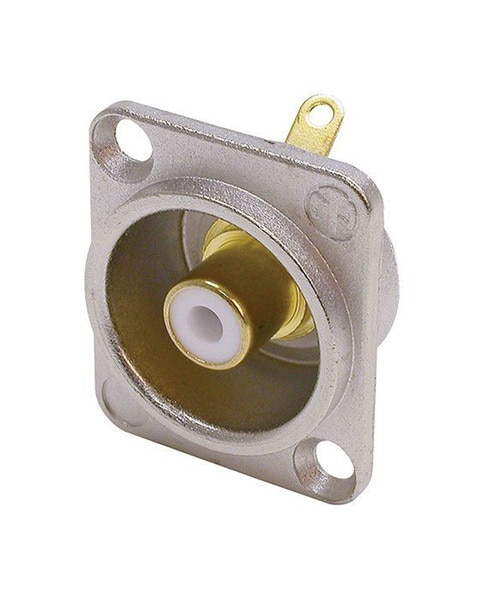

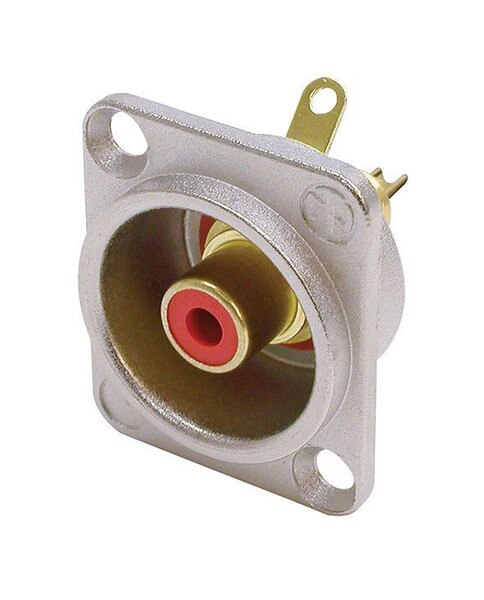

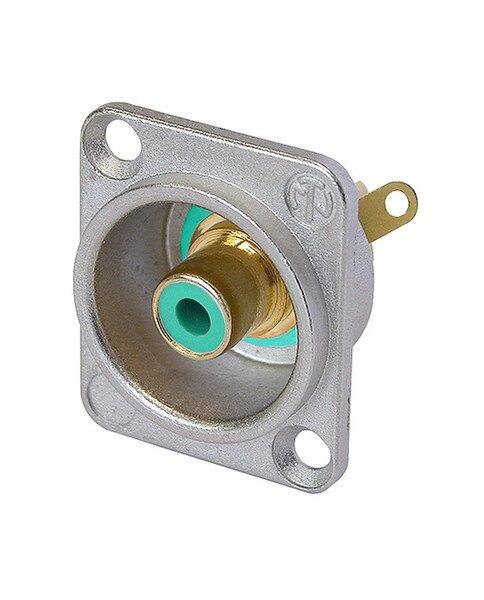

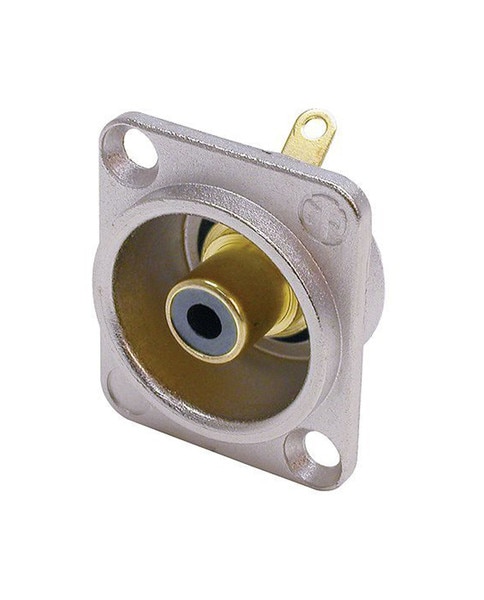

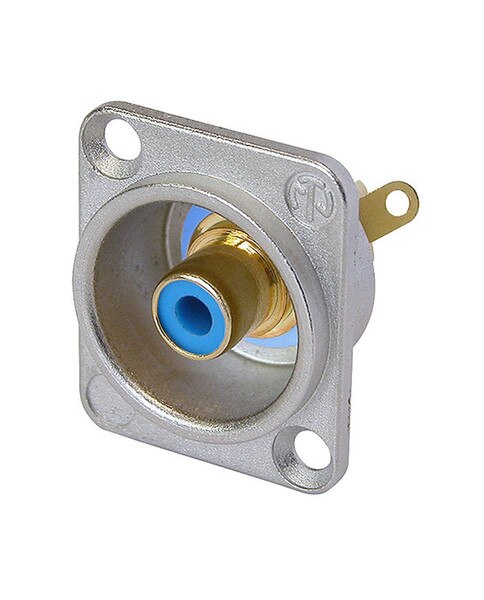

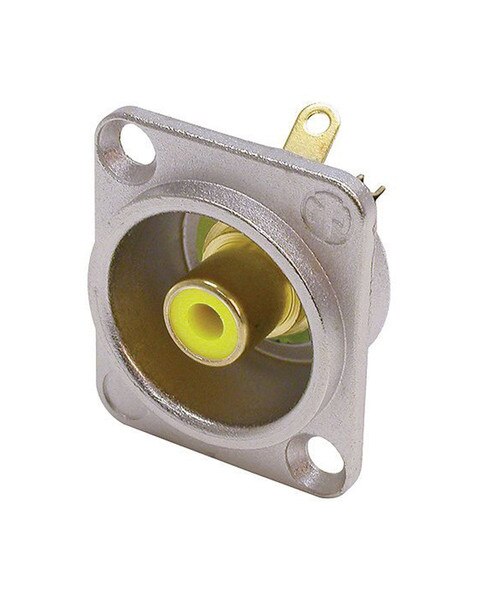

Neutrik NF2D- Recessed RCA Socket: Nickel Shell, Coloured Insulators
Phono socket in nickel D-shape housing, coloured isolation washers, solder version
HIGHLIGHTS- Precisely machined to our demanding quality standards
- Gold plated contacts
ELECTRICAL- Capacitance between contacts: ≤ 9 pF
- Contact resistance: <10 mΩ
- Dielectric strength: 0,5 kVdc
- Insulation resistance: > 5 GΩ
- Rated current per contact: depends on mating connector / A
- Rated voltage: < 50 V
MECHANICAL- Lifetime: > 2000 mating cycles
- Wiring: Solder contacts
- Mounting direction: Front mounting
- Chassis shape: D
MATERIAL- Contacts: Brass (CuZn39Pb3)
- Shell: Zinc diecast (ZnAl4Cu1)
- Contact plating: 0.05 µm Au over 2 µm Ni
ENVIRONMENTAL- Flammability: UL 94 HB
- Standard compliance: IEC 601-14
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
