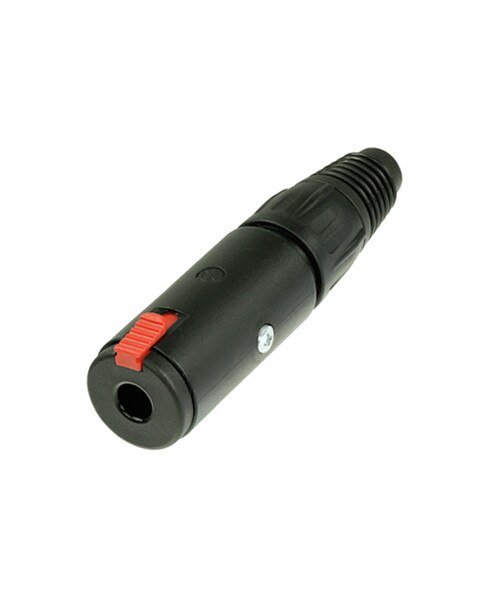

Neutrik NJ3FC6-BAG In-Line Locking 1/4" Cable Black Shell
Professional locking 1/4" cable jack for secure in-line connections. Black metal housing, silver contacts, excellent cable protection The 3 pole phone cable jack in-line version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.
HIGHLIGHTS- Securely locking cable jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Metal shell makes it extremely robust and reliable
- Neutrik cable retention and boot as on XLR connectors
- Solder terminals
- Colored boots available in 10 colors for color coding and marking
ELECTRICAL- Contact resistance: < 6 mΩ (initial)
- Dielectric strength: 1 kVdc
- Insulation resistance: ≥ 1 GΩ @ 500 V dc
- Rated current per contact: 10 A
MECHANICAL- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: < 30 N
- Withdrawal force: < 20 N
- Lifetime: > 10000 mating cycles
- Locking force: > 80 N
- Wiresize: 1 mm²
- Wiresize: 18 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
MATERIAL- Boot: Polyurethan
- Contact plating: 2 µm Ag
- Contacts: Brass (CuZn37) (Ground)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black
- Strain relief: Polyacetal (POM)
ENVIRONMENTAL- Standard compliance: EIA RS 453, IEC 60603-11
- Solderability: Complies with IEC 68-2-20
- Temperature range: -25 °C to +70 °C
