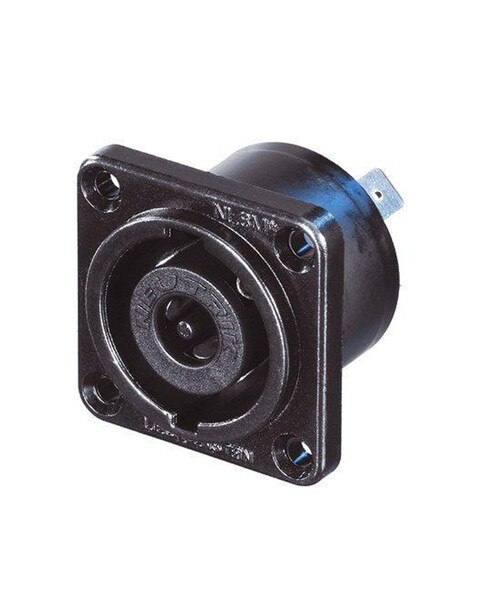

Neutrik NL8MPRXX-BAG 8-Pin Chassis Mount Black
8 pole chassis connector, black chrome metal square G-size flange, countersunk thru holes, 3/16" flat tabs The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
HIGHLIGHTS- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal flange
- Airtight design - optimized for speaker applications
ELECTRICAL- Contact resistance: ≤ 3 mΩ (after lifetime)
- Dielectric strength: 4 kVdc (peak)
- Insulation resistance: > 1 GΩ (after damp heat)
- Rated current per contact: 30 A rms continuous
- Rated current per contact: 40 A audio signal, duty cycle 50 %
- Rated voltage: 250 V ac
- Attention: speakON is NOT to be used as an AC mains or power supply connector!
MECHANICAL- Lifetime: > 5000 mating cycles
- Locking device: Quick Lock
- Chassis shape: square G-size flange
- Layout: four thru holes
MATERIAL- Contact plating: 4 µm Ag
- Contacts: Bronze (CuSn6)
- Shell: Polyamide (PA 6 30 % GR) black chrome
ENVIRONMENTAL- Flammability: UL 94 HB
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
