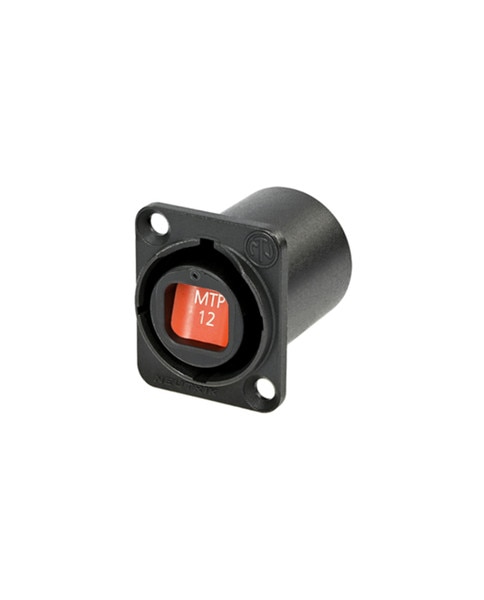

Neutrik NO12FDW-A OpticalCON MTP 12 Chassis Connector
Details
Details
The Neutrik NO12FDW-A OpticalCON MTP 12 chassis connector provides a ruggedized, dirt-protected solution for 12-channel fiber optic connections. It is designed for point-to-point multichannel routing and features a laser protective metal shutter for dust protection.
With IP65 ingress protection in mated condition, this connector accommodates standard MTP® ELITE male connectors for easy installation and offers color coding according to ANSI/TIA-568.3-D standards.
| Specification | Details |
|---|---|
| Gender | Female |
| Insertion Force | < 45 N |
| Withdrawal Force | < 45 N |
| Lifetime (typ.) | 2500 mating cycles |
| Locking Force | 1000 N |
| Locking Device | Push-Pull |
| Mounting Direction | Front mounting |
| Chassis Shape | D |
| Temperature Range | -40 °C to +75 °C |
| Protection Class | IP65 in mated condition with SCDP-* |
| Insertion Loss | < 0.9 dB / connection |
