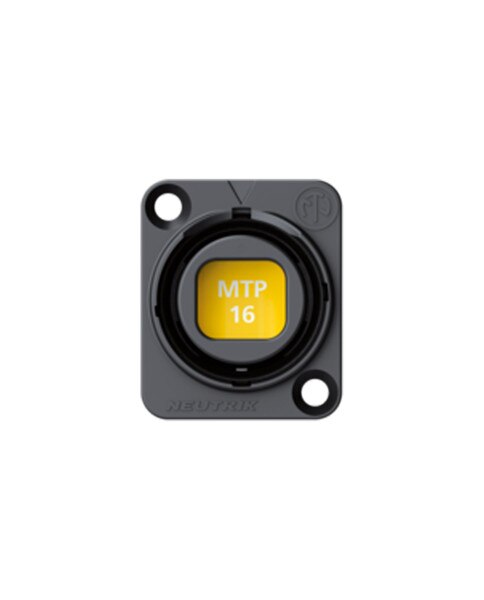

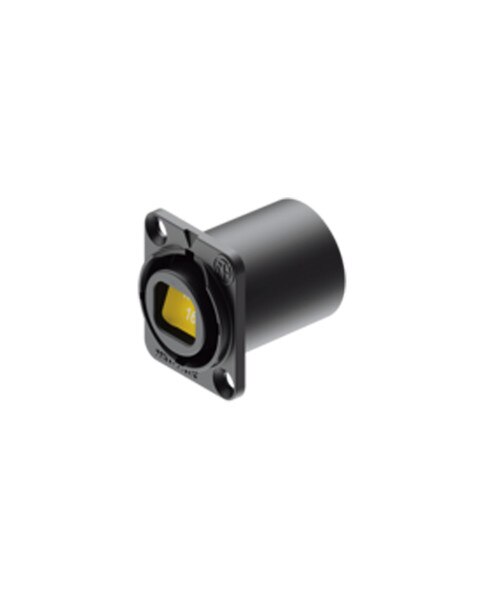

Neutrik NO16FDW-A OpticalCON MTP 16 Chassis Connector
SKU: NO16FDW-A
Details
Details
The Neutrik NO16FDW-A OpticalCON MTP 16 chassis connector is designed for robust and reliable fiber optic connections. Its compatibility with standard MTP® 16 (ELITE male) breakout cables facilitates easy adaptation to various fiber standard connectors, including LC, SC, and ST.
Featuring a ruggedized design with IP65 ingress protection, this connector ensures durability in demanding environments. The laser protective metal shutter and two-component rubber gasket enhance dust resistance, making it suitable for high mating cycles.
| Specification | Details |
|---|---|
| Insertion Force | < 45 N |
| Withdrawal Force | < 45 N |
| Lifetime (typ.) | 2,500 mating cycles |
| Locking Force | 1,000 N |
| Locking Device | Push-Pull |
| Mounting Direction | Front mounting |
| Chassis Shape | D |
| Temperature Range | -40 °C to +75 °C |
| Protection Class | IP65 in mated condition with SCDP-* |
| Insertion Loss | < 0.9 dB / connection |
