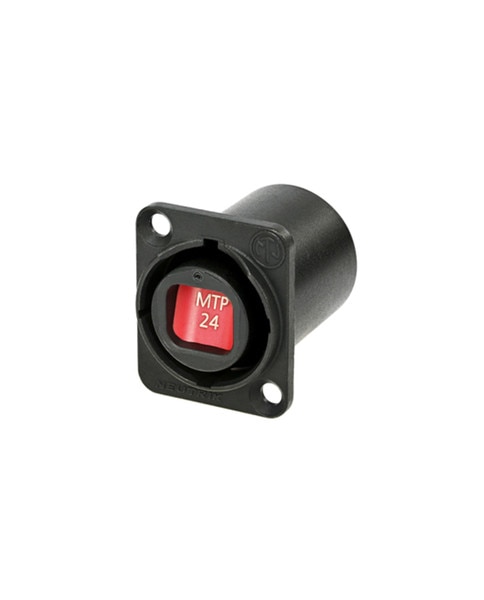

Neutrik NO24FDW-A OpticalCON MTP 24 Chassis Connector
Details
Details
The Neutrik NO24FDW-A OpticalCON MTP 24 chassis connector offers a robust solution for 24-channel fiber optic connections. Its rear compatibility with standard MTP 24 connectors ensures seamless integration with various fiber standard connectors like LC, SC, and ST.
Designed for high durability, this connector features a laser protective metal shutter and IP65 ingress protection in mated conditions, making it suitable for demanding environments.
- Ruggedized 24-channel fiber optic connection
- Temperature range: -40 °C to +75 °C
- Lifetime of 2,500 mating cycles
| Specification | Details |
|---|---|
| Gender | Female |
| Insertion Force | < 45 N |
| Withdrawal Force | < 45 N |
| Lifetime (typ.) | 2,500 mating cycles |
| Locking Force | 1,000 N |
| Locking Device | Push-Pull |
| Mounting Direction | Front mounting |
| Chassis Shape | D |
| Temperature Range | -40 °C to +75 °C |
| Protection Class | IP65 in mated condition with SCDP-* |
| Insertion Loss | < 0.9 dB / connection |
