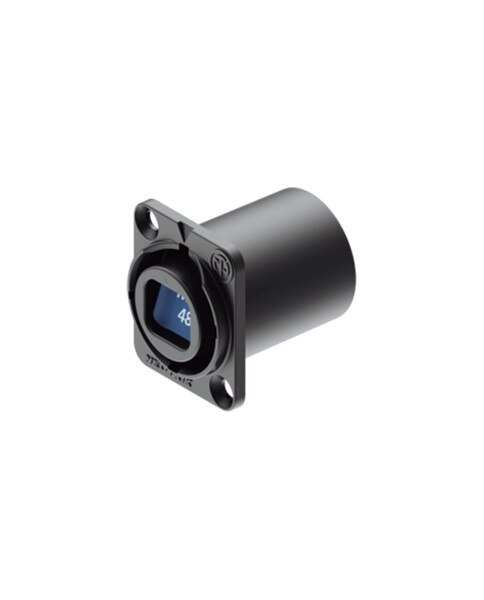

Neutrik NO48FDW-A OpticalCON MTP 24 Chassis Connector
Details
Details
The Neutrik NO48FDW-A OpticalCON MTP chassis connector offers a robust solution for 48-channel fiber optic connections. Designed for easy adaptation to standard MTP® connectors, it ensures high performance and minimal maintenance.
Key features include:
- IP65 ingress protection in mated condition
- Durable metal shutter for dust protection
- Supports standard MTP® ELITE MALE connectors
| Specification | Details |
|---|---|
| Gender | Female |
| Insertion Force | < 45 N |
| Withdrawal Force | < 45 N |
| Lifetime (typ.) | 2,500 mating cycles |
| Locking Force | 1,000 N |
| Locking Device | Push-Pull |
| Mounting Direction | Front mounting |
| Chassis Shape | D |
| Temperature Range | -40 °C to +75 °C |
| Protection Class | IP65 in mated condition with SCDP-* |
| Insertion Loss | < 0.9 dB / connection |
