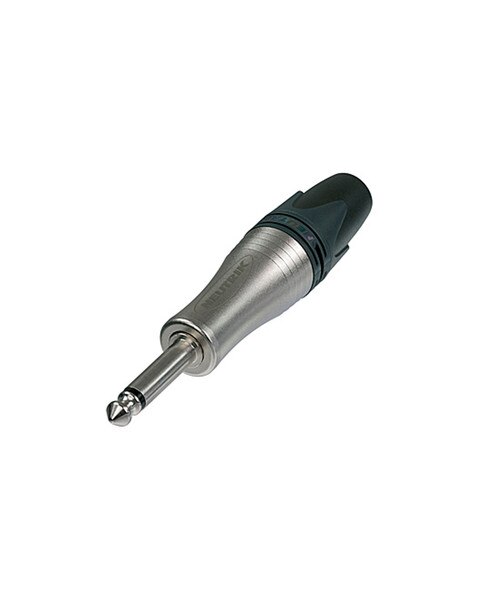

Neutrik NP2XL 1/4" Jumbo Plug - for cables up to 10mm OD
2 pole 1/4'' professional phone plug, up to 10 mm cable O.D. The professional 1/4'' jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and incorporates the proven features and benefits of the standard PX range.
HIGHLIGHTS- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Ergonomic design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
ELECTRICAL- Contact resistance: ? mΩ depends on mating connector
- Dielectric strength: 1 kVdc
- Insulation resistance: > 2 GΩ (initial), ≥ 1 GΩ (after damp heat test)
- Rated current per contact: ? A depends on mating connector
- Rated voltage: < 50 V
MECHANICAL- Cable O.D.: ≤ 10 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 1 mm²
- Wiresize: 18 AWG
ENVIRONMENTAL- Standard compliance: IEC 60603-11 / EIA RS-453
- Temperature range: -20 °C to +65 °C
