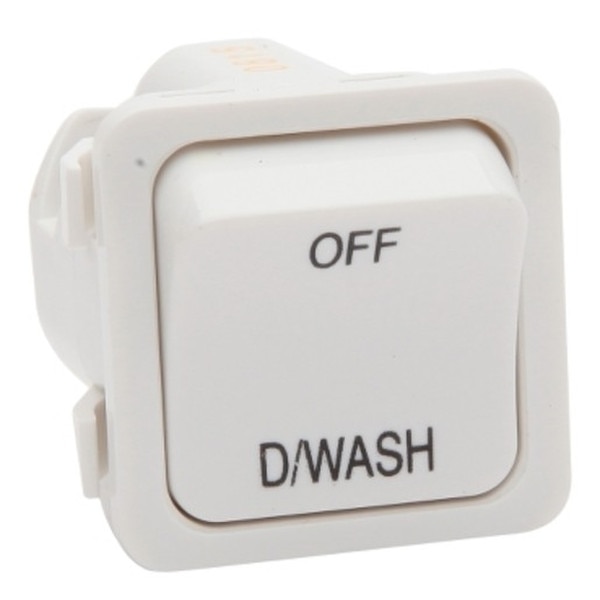

PDL 600 Series - Switch Module, 2 Way Dish Wash PDL681M20DW
Details
Details
PDL 600 Series - Switch Module, 2 Way Dish Wash PDL681M20DW
A New Zealand classic - 600 Series switches and sockets have been a staple of the kiwi home. With classic lines and a high gloss finish 600 Series is a reliable favourite with homeowners and electricians. For additional safety, all PDL 600 Designer Series sockets are fitted with safety shutters behind the pin holes.Colour Tint - White
Material - PC (polycarbonate)
Surface finish - gloss
Installation direction
- horizontal
- vertical
Rated current
- 16 AX
- 20A
[Ue] rated operational voltage - 230/240 V
Network type - AC
Motor M-rating AS3133 - M60
Number of poles- 1
Cable cross section
- 2 x 2.5-2.5 mm²
- 4 x 1.5-1.5 mm²
Environmental Disclosure - ENVPEP120506EN
