Panel Male IEC Plug Bulgin PX0590

SKU: PX0590/63
NZD $7.20 +GST
QuantityPrice

Same-Day Dispatch on orders placed before 2pm.

Details

Details

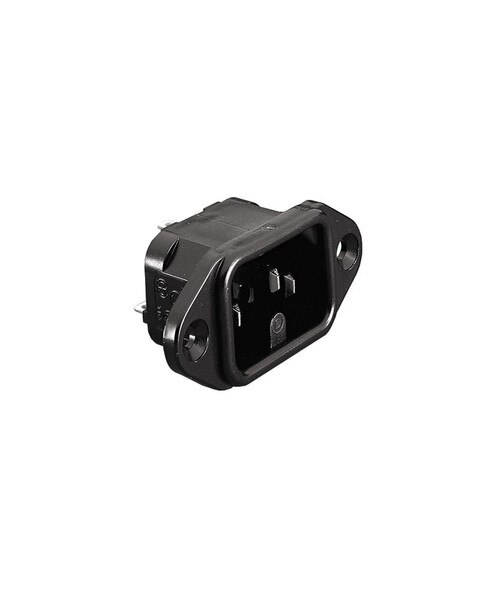

The Bulgin PX0590 is a flange mount IEC inlet designed to meet EN60 320-1 Standard Sheet C15 and C16 Class I requirements. It features a choice of termination options, including 2.8mm solder tag and 6.3mm tab, depending on the part code.

This connector is available in multiple colors, including black, grey, and white, with specific approvals for certain colors. An insulation boot and retaining clip are available separately for enhanced functionality.



SpecificationDetails
StandardEN60 320-1 C15 and C16 Class I
Termination Options2.8mm Solder Tag, 6.3mm Tab
Color OptionsBlack, Grey, White
Insulation BootAvailable separately (Part code 11328)
Retaining ClipAvailable separately (Part code KT0006)
Compatible ConnectorPX0597 Female Connector
