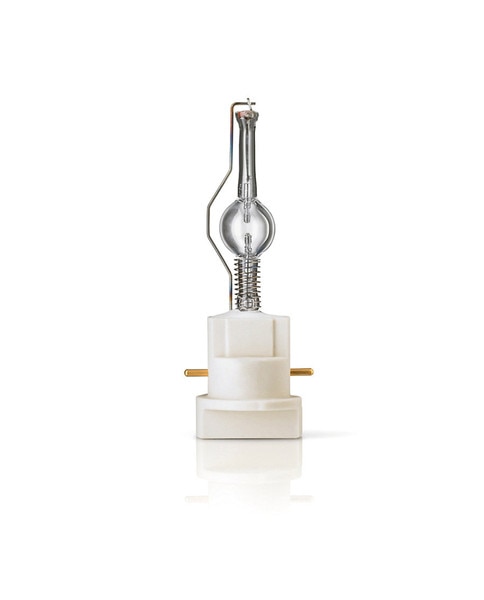

Philips MSR Platinum 35 928190905114

Philips MSR Platinum 35

Commonly used for Robe MMX Washlight

Specifications

General Information

Cap-Base	PGJX36 [ PGJX36]
Operating Position	UNIVERSAL [ Any or Universal (U)]
Main Application	Studio/Theatre/TV

Life To 50% Failures (Nom)	1000 h
System Description	-

Light Technical

Color Code	2
Luminous Flux (Min)	50760 lm
Luminous Flux (Nom)	56400 lm
Chromaticity Coordinate X (Nom)	0.295
Chromaticity Coordinate Y (Nom)	0.313
Correlated Color Temperature (Nom)	7750 K
Chromaticity Coordinate X (SO) (Max)	0.3084
Chromaticity Coordinate X (SO) (Min)	0.2913
Chromaticity Coordinate X (SO) (Nom)	0.2998
Chromaticity Coordinate Y (SO) (Max)	0.3345
Chromaticity Coordinate Y (SO) (Min)	0.3063
Chromaticity Coordinate Y (SO) (Nom)	0.3204

Color Rendering Index (SO) (Min)	60.5
Color Rendering Index (SO) (Nom)	64.5
Color Temperature (SO) (Max)	8050 K
Color Temperature (SO) (Min)	6650 K
Color Temperature (SO) (Nom)	7350 K
Luminous Efficacy (SO) (Min)	38 lm/W
Luminous Efficacy (SO) (Nom)	42.5 lm/W
Luminous Flux (SO) (Min)	31500 lm
Luminous Flux (SO) (Nom)	36500 lm
Luminous Efficacy (rated) (Nom)	70.2 lm/W
Color Rendering Index (Nom)	73

Operating and Electrical

Power (Rated) (Nom)	800 W
Lamp Current (Nom)	12.0 A

Ignition Supply Voltage (Min)	220 V
Ignition Time (Nom)	10 s

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap-Base Information

PGJX36

Luminaire Design Requirements

Bulb Temperature (Max)	950 °C
Pinch Temperature (Max)	450 °C

Product Data

Full product code	871829112006300
Order product name	MSR Platinum 35 1CT
EAN/UPC - Product	8718291120063
Order code	928190905114

Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	16
Material Nr. (12NC)	928190905114
Net Weight (Piece)	0.053 kg
