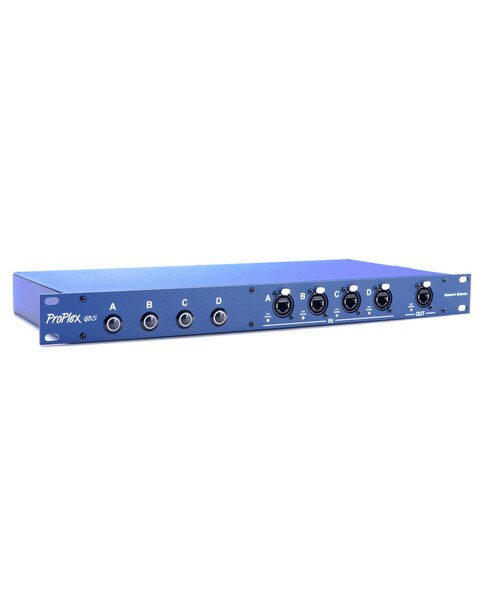

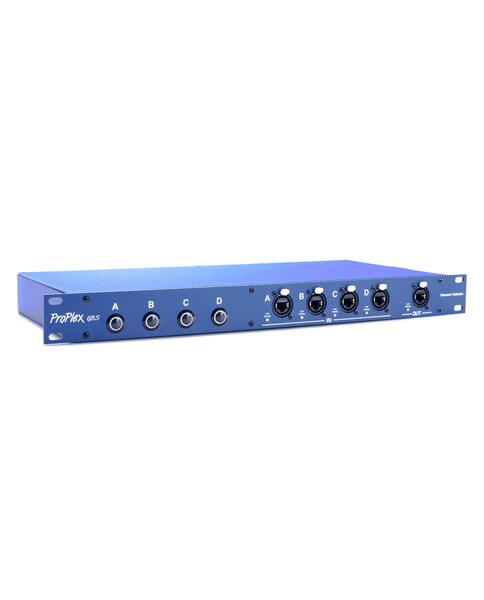

TMB ProPlex GBS Network Selector
4-way Ethernet Source Selector and Combiner Especially useful as a lighting console A/B switcher!
HIGHLIGHTS- Active selection of any one or two of four network sources
- Seamless switching with no glitches. Retains links for truly instant switching.

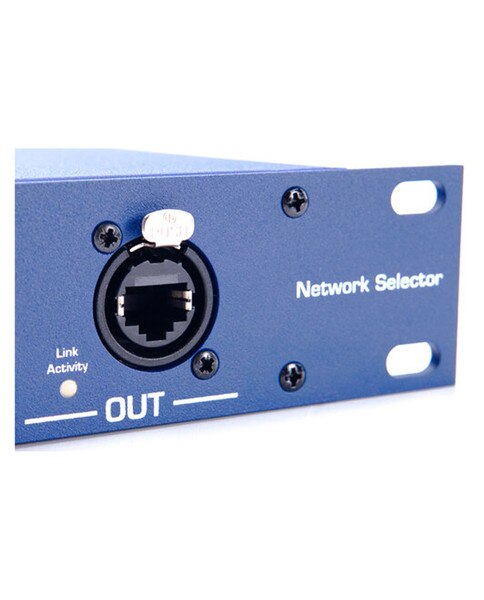

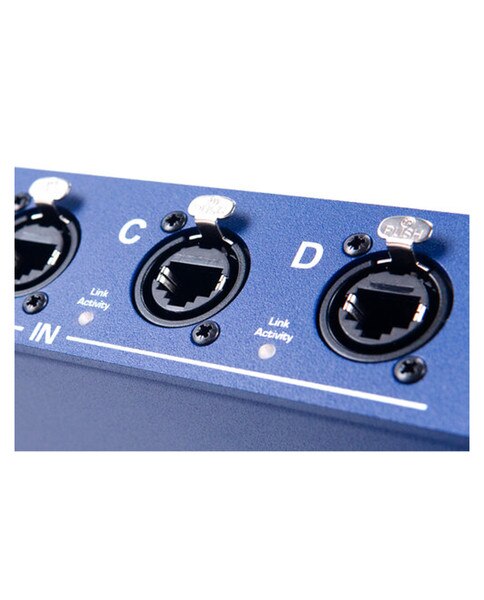

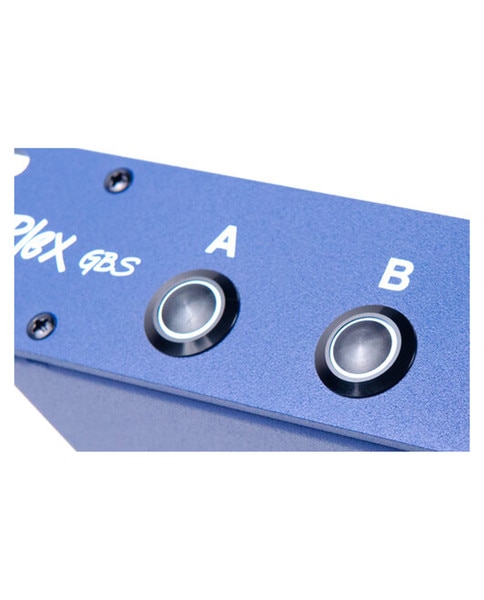

- 4 x 1Gb IN, 1 x 1Gb OUT, with indicating button selectors
- Input and Output indicator LEDs show network activity and speed
- Rugged ProPlex RackMount “blue-box” construction
SPECIFICATIONS- Part Number: PPGBSNS1X4R
- Ethernet Ports: 5
- Ethernet Connectors: Neutrik Ethercon RJ45
- Network Protocols: sACN, ArtNet, CobraNet, Dante, ETCNet, Ethersound, MA-Net, and more
- Power: 100-240V, 50-60 Hz

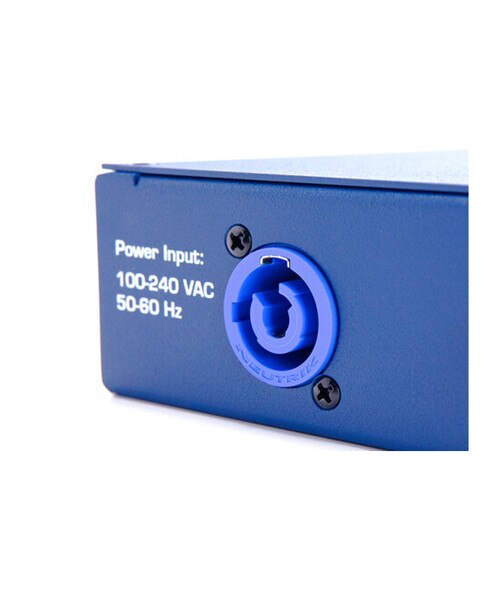

- Power Connector: Neutrik PowerCon
- Power Consumption: 15 W
- Fuse: 1 A, 250 V
- Operating Temp.: -20 to + 40C
- Unit Dimensions (WxHxD): 19 x 1.72 x 8.38 in [482.6 x 1.72 x 212.8 mm]
- Unit Weight (unpacked): 6.6 lb [3kg]
- Shipping Dimensions (WxHxD) 10.25 x 7.3 x 13.5 in [261 x 186 x 343 mm]
- Shipping Weight 7.5 lb [3.4 kg]
]
