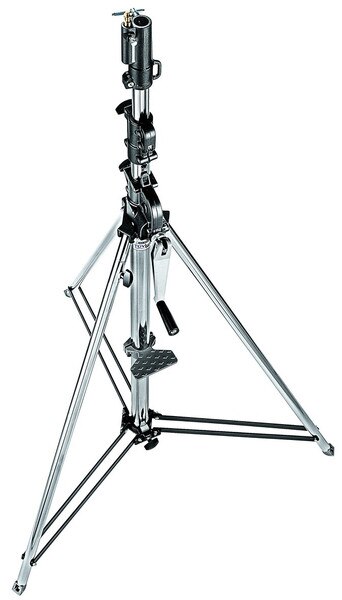

Wind Up (Winch Up) Manfrotto Stand 087NWB 3.7M Black Zinc
Details
Details

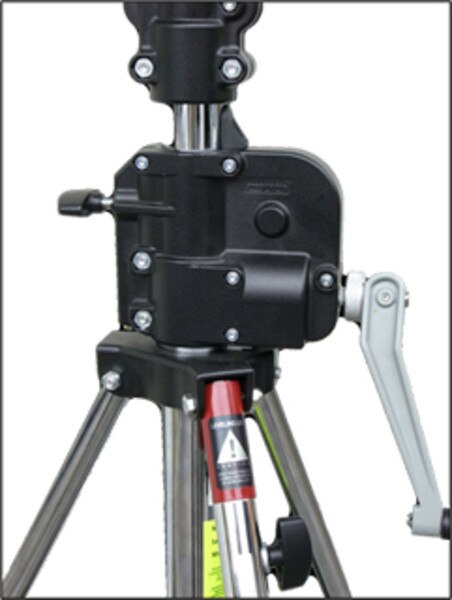

Manfrotto Winchup Stand, 087 NWB Black Zinc VersionIdentical to the standrad version only in BlackMax Height 370cmMax Payload at height 30KG'sChrome steel stand with geared column. 2 risers extend simultaneously at an elevation of 4.4cm per handle turn. Safety cable ensures simultaneous retrieval of all sections. 3 sections, 2 risers. 1 levelling leg.
attachment number | type 14 attachment type | |
Color | silver color | |
column cross section | round | |
column tube diameter | 55.45.38mm | |
footprint max diameter | 128.0 cm | |
leg cross section | round | |
levelling leg | 1 number | |
load capacity at maximum extension at 6 inclination" | 30.0 kg | |
material | chrome steel | |
risers stand number | 2 number | |
section centre column | 3 number | |
stand leg size | 30mm | |
suggested wheels | 104. 104G. 374-10 | |
travel of column for each 360° turn of handle | 4.4 cm | |
TV81 | yes | |
closed length | 181.0 cm | |
maximum height | 370.0 cm | |
minimum height | 167.0 cm | |
safety payload | 30 kg | |
weight | 21.4 kg |
