iSEMcon EMX-7150 Measurement Microphone Kits

The iSEMcon EMX-7150 is a precision ¼” measurement microphone constructed from durable stainless steel and fitted with watertight Neutrik connectors. It delivers a highly accurate frequency response while handling extreme sound pressure levels up to 145 dB SPL. This low-impedance microphone operates on 12–52 V phantom power, available on most professional audio interfaces and microphone preamplifiers. Thanks to its robust mechanical design, the EMX-7150 is ideal for harsh environments and outdoor sound reinforcement measurements. Its class 1 frequency response (note: this is not a certified Class 1 microphone) makes it highly suitable for room acoustics analysis, including applications in recording studios and home theaters. It can be used without the supplied free-field calibration data file, with individual calibration data serving as proof of its outstanding performance. For outdoor applications where exposure to spray or light water is possible, the SWS-7 super protection windshield is recommended to safeguard the microphone.

• Frequency range: 10 Hz – 20 kHz
• Sensitivity: 6 mV/Pa typ.
• Matching tolerance: ±0.5 dB linearity, 1 mV sensitivity @ 94 dB SPL
• Dynamic range: ~30 – >140 dB SPL
• 3% distortion limit: 145 dB SPL typ.
• Calibration chart and downloadable calibration data at my.iSEMcon.com
• IEC 61672 Class 1 frequency response
• Dimensions: acoustic port dia. ¼" (7 mm); body 0.75" (19 mm); overall length 6" (152 mm)
• Microphone weight: 0.3 oz (75 g) each

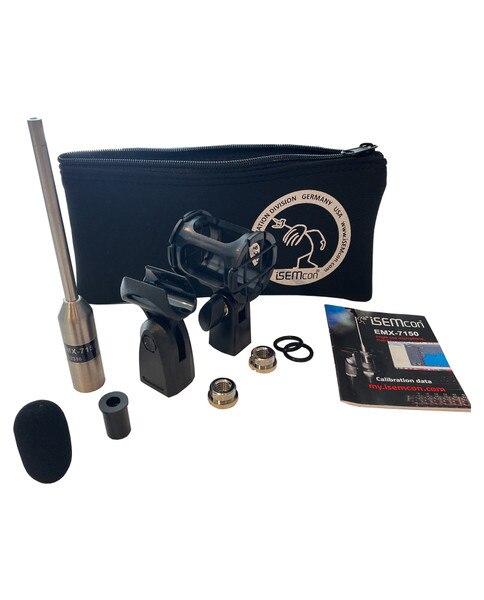

Each EMX-7150 microphone kit includes:

• EMX-7150 measurement microphone
• Microphone clip with adapter screw
• Shockmount clip with adapter screw
• WS-7XL windscreen
• ¼" to IEC ½" (13.2 mm) calibrator adapter
• Calibration data download via my.iSEMcon.com
• Protective pouch
