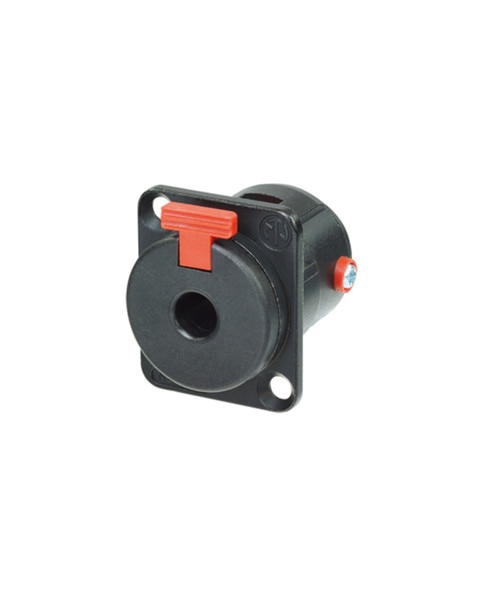

Neutrik NJ3FP6C-BAG Panel-Mount Jack Receptacle Black Shell Silver Contacts
Locking 1/4" phone jack, D-size shell, black metal housing and silver contacts The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
HIGHLIGHTS- Securely locking chassis jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
- Dimensionally compatible with D Series (31 x 26 mm)
- Solder terminals
ELECTRICAL- Contact resistance: < 6 mΩ (initial)
- Dielectric strength: 1 kVdc
- Insulation resistance: ≥ 1 GΩ @ 500 V dc
- Rated current per contact: 10 A
MECHANICAL- Insertion force: < 30 N
- Withdrawal force: < 20 N
- Lifetime: > 10000 mating cycles
- Locking force: > 80 N
- Wiresize: 1 mm²
- Wiresize: 18 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Mounting direction: Front mounting
- Chassis shape: D
MATERIAL- Contact plating: 2 µm Ag
- Contacts: Copper alloy (CuSn6) (Ground)
- Insert: Polyamide (PA 6.6 30 % GR) UL94 V-0
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black
- Strain relief: Polyacetal (POM)
ENVIRONMENTAL- Standard compliance: EIA RS 453, IEC 60603-11
- Solderability: Complies with IEC 60068-2-20
- Temperature range: -25 °C to +70 °C
